BNC 670C - 1.1 AT-LVDS-SMA8; 1.2 AT-DTLL8

Model 670C Berkeley Nucleonics Corp. 92 of 96
The AT-LVDS-SMA8 cable adapter converts from the Mini SAS HD connector located on the rear of the
instrument to 16 SMA connectors. This cable ensures the best signal integrity and flexibility required for
transmitting the high-speed digital signals provided by the Model 670C generator series.
Output connector
SMA
Output type
LVDS
Number of SMA
16 (8 bits)
Cable type
Proprietary standard
Cable Length
1 meter

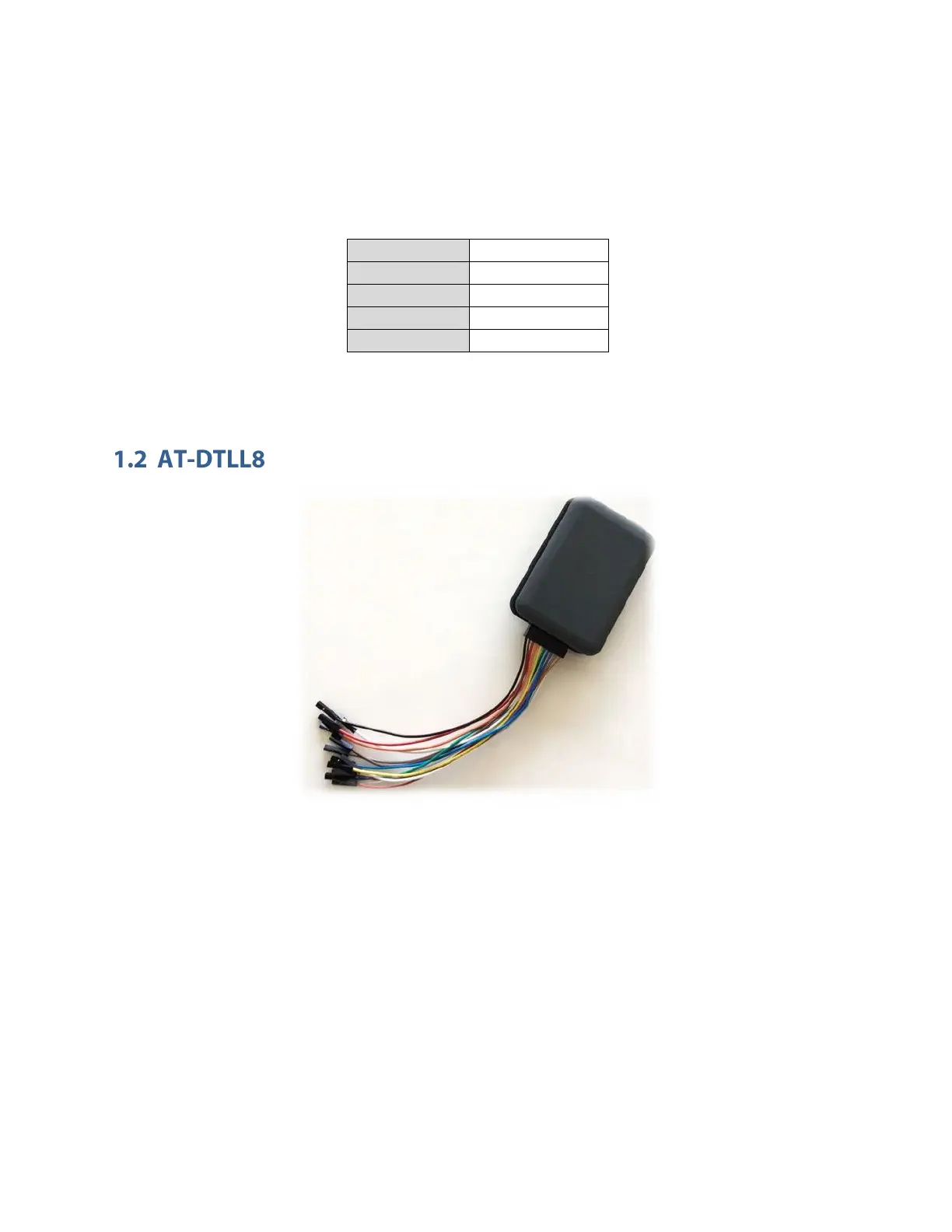

The AT-DTLL8 is a 8 bit LVDS to LVTTL converter that converts LVDS differential signals provided by the
mini-SAS HD digital connector to standard LVTTL single ended signals. The probe provides the possibility
to programme by software the voltage high level of the TTL signals from 0.8V to 3.8V.
The AT-DTLL8 probe max bit rate is 125Mbps@0.8V and 400Mbps@3.6V.
