Handlebars

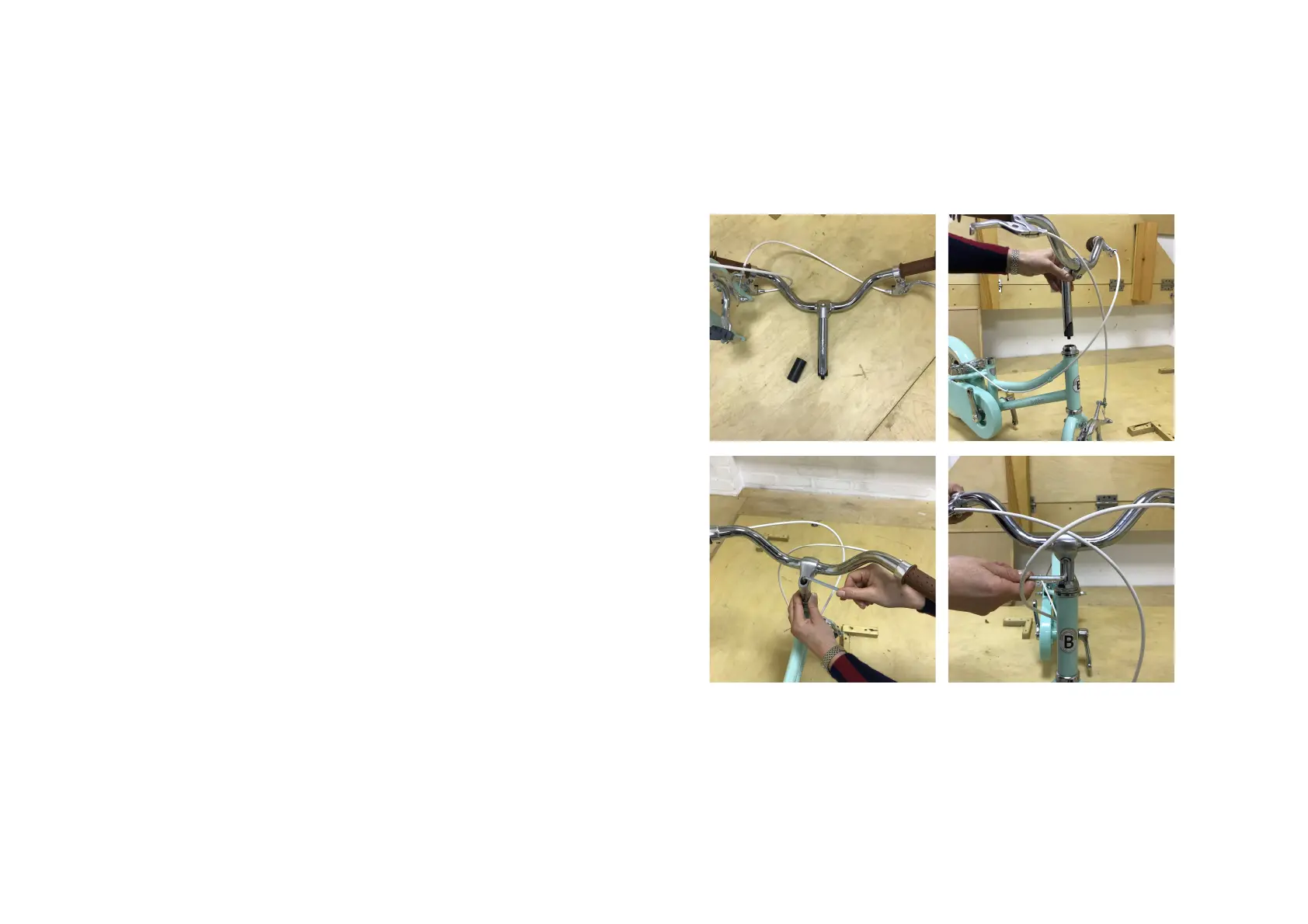

a. Remove and discard the black plastic cap from
the bottom of the handlebar stem. Simply use
your allen key to loosen the bolt at the top of
the handle; the plastic cap will then pull o.
b. Insert the stem into the hole in the frame. The
‘minimum insertion line’ is marked on the stem.
Make sure the fork is the correct way round,
with front brake facing forwards not behind the
wheel.
c. Use your allen key to tighten the bolt on the top
of the handlebar. Make sure it is very tight.
d. You can adjust the angle of the bars. Horizontal
is best. Use your allen key to tighten the clamp
bolt. It is on the front of the stem. Make sure it
is very tight.
a. b.
c. d.
