Front Mudguard

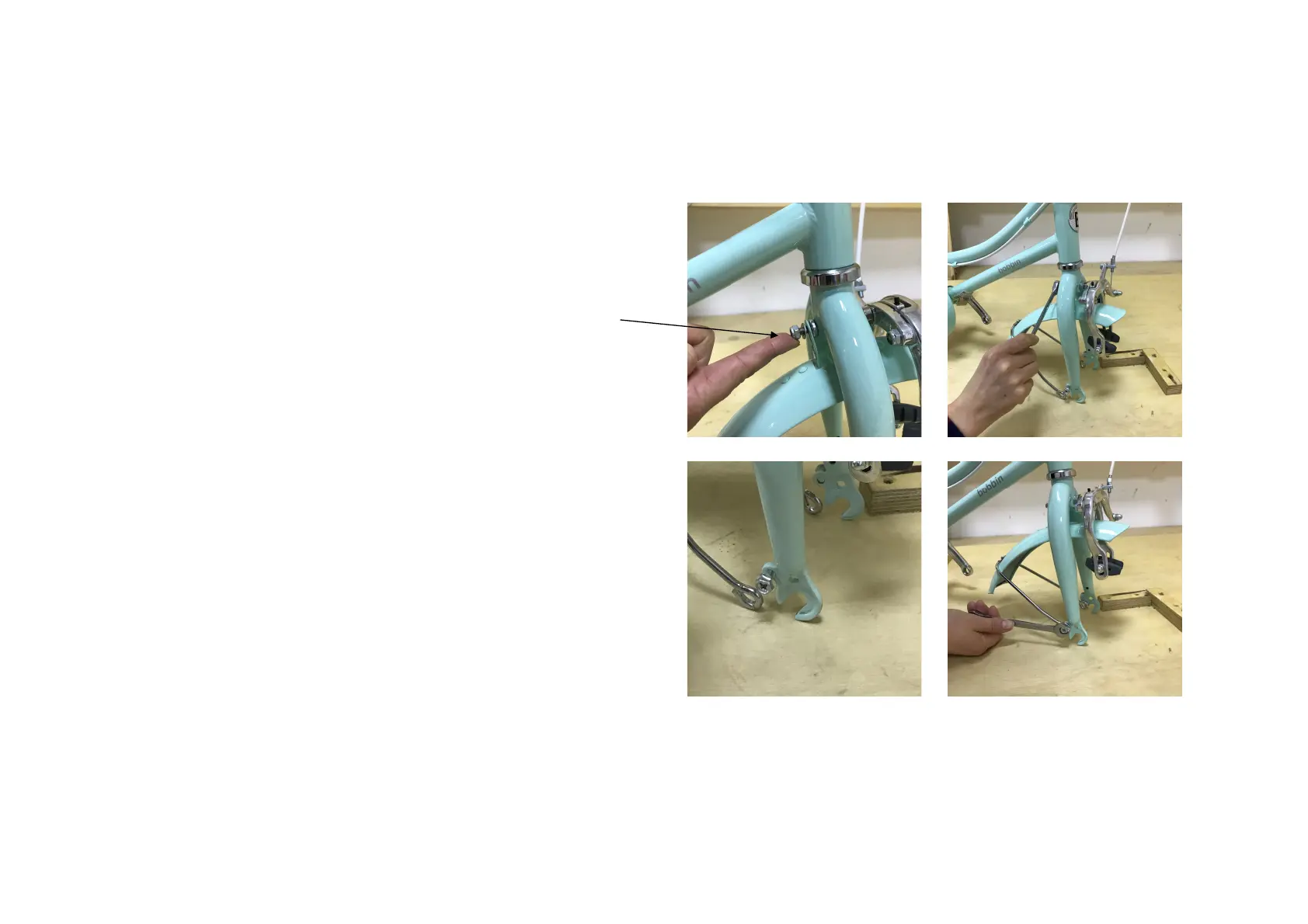

a. Using the 10mm spanner, unfasten the front
brake bolt nut.
b. Fasten the front mudguard behind the fork like
this.
c. Using a 10mm spanner, unfasten the nuts at the
bottom of the fork.
d. Attach the mudguard stays (metal arms) to the
fork, using these nuts.
e. If the mudguard is not aligned completely
straight, you can gently straighten it by hand.
Use a Phillips screwdriver to loosen the
attachment bracket at the back of the
mudguard, then re-tighten when the mudguard
is straight.
a. b.
c. d.
