Keyless Controller Shown
A
P–16616
76
9
8 10
1
5
3
2 4
Icon / Condition
Ref. Function Light Alarm / Code Description
1 Auxiliary OFF – – – –
Hydraulics CONTINUOUS – – – – Auxiliary Hydraulics Button pressed, hydraulic functions available.
FLASHING 3 Beeps Error ◊ Error with Auxiliary Hydraulics
2 Two–Speed OFF – – – – – –
Travel CONTINUOUS – – – – Two–Speed activated, High Range engaged
FLASHING 3 Beeps Error ◊ Solenoid Error
NOTE: Two–Speed is disabled during high engine coolant temperature or high hydraulic fluid temperature.
3 CONTINUOUS – –
• Left Console down. Hydraulic / Traction Drive functions activated
Hydraulic / OFF – – Left Console up. Hydraulic / Traction Drive functions deactivated
Traction Drive FLASHING 3 Beeps Error ◊ Error with console sensor or workgroup solenoid
FLASHING CONTINUOUS Error ◊ Workgroup solenoid not connected
4 Glow OFF – –
•
Plugs CONTINUOUS – – – – Glow Plugs energized
FLASHING 3 Beeps Error ◊ Error with Glow Plugs
5 OFF – – •
System FLASHING 3 Beeps Error ◊ Voltage out of range
Voltage CONTINUOUS 3 Beeps Warning ◊ Voltage low or high
FLASHING CONTINUOUS Warning ◊ Voltage extremely high
CONTINUOUS CONTINUOUS Shutdown ◊ Voltage extremely low – Engine will stop in 10 seconds.
6 Engine Oil OFF – –
•
Pressure FLASHING CONTINUOUS Shutdown ◊ Engine Oil Pressure is extremely low – Engine will stop in 10 seconds.
7 OFF – – •
Hydraulic Oil FLASHING 3 Beeps Warning ◊ Error with Hydraulic Filter
Filter CONTINUOUS 3 Beeps Error ◊ Hydraulic Oil Temperature out of range
& Temperature CONTINUOUS 3 Beeps Warning ◊ Hydraulic Filter plugged or temperature high
FLASHING CONTINUOUS Shutdown ◊ Hydraulic Oil Temp. extremely high – Engine will stop in 10 seconds.
NOTE: Two–Speed is disabled during high engine coolant temperature or high hydraulic fluid temperature.
8 OFF – –
•
General CONTINUOUS 3 Beeps Error ◊ Error with one or more engine, hydraulic, or fuel functions.
Warning CONTINUOUS 3 Beeps Warning ◊ Low fuel, engine speed high, coolant temperature high
FLASHING CONTINUOUS Shutdown ◊ Coolant temperature or engine speed extremely high – Engine will
stop in 10 seconds.
9 Keypad CONTINUOUS 3 Beeps Error ◊ Engine Oil Pressure sender out of range.
Unlocked CONTINUOUS 3 Beeps Warning ◊ Engine oil level low.
FLASHING CONTINUOUS Shutdown ◊ Engine oil pressure very low. Engine will shutdown in 10 seconds.
10 Seat Belt ON – – – – Light stays on for 45 seconds to remind operator to fasten seat belt.
• This is the normal operating condition.
◊ These functions are monitored and have SERVICE CODES associated with them. See SYSTEM SETUP & ANALYSIS Page 59 for descriptions of SERVICE
CODES.
331/331E/334 Excavator
Operation & Maintenance Manual
5

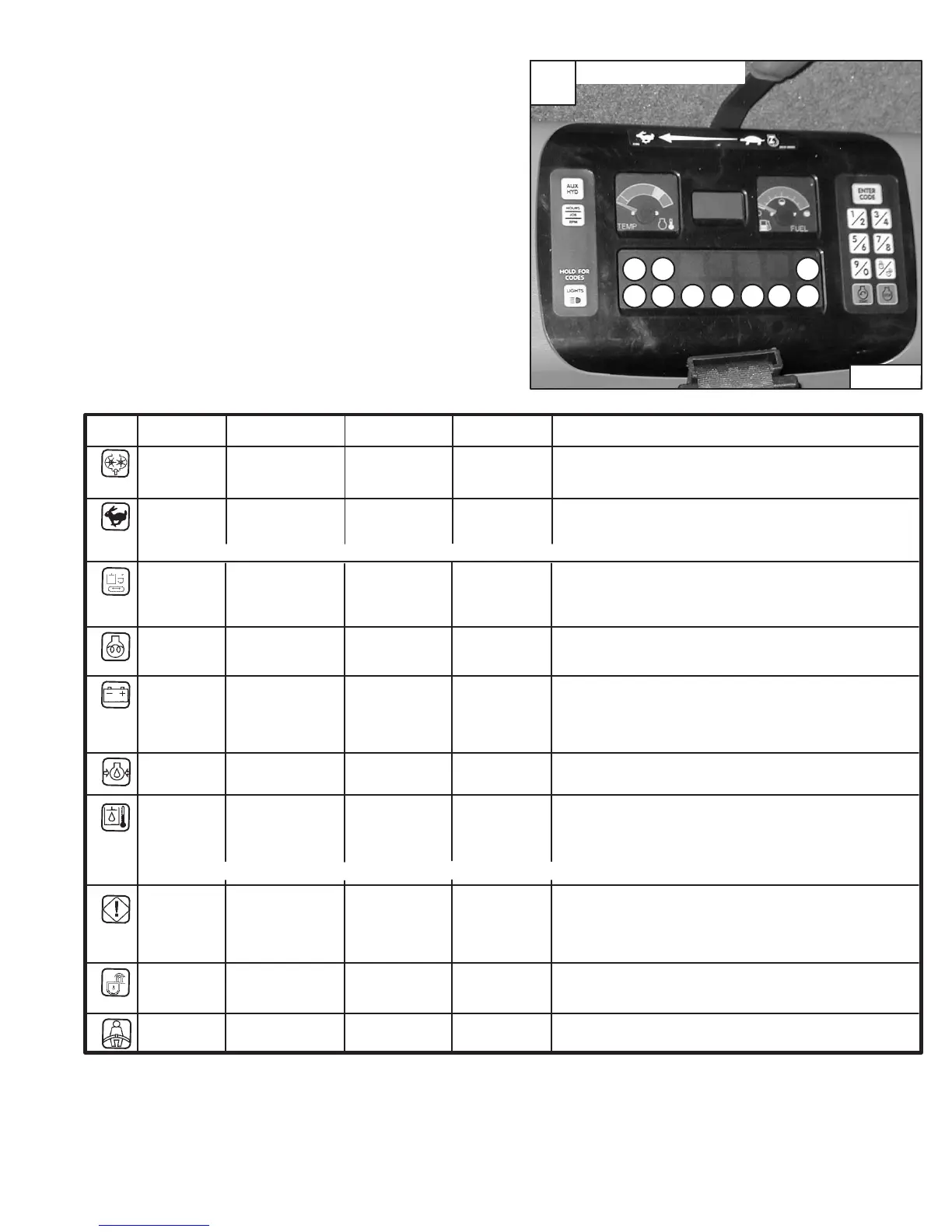

INSTRUMENTS AND CONSOLES (Cont’d)
19.
Function Icons
The right console contains the instrument panel with
Function Icons [A].
The table below shows the Icons, their function and other
important information.
