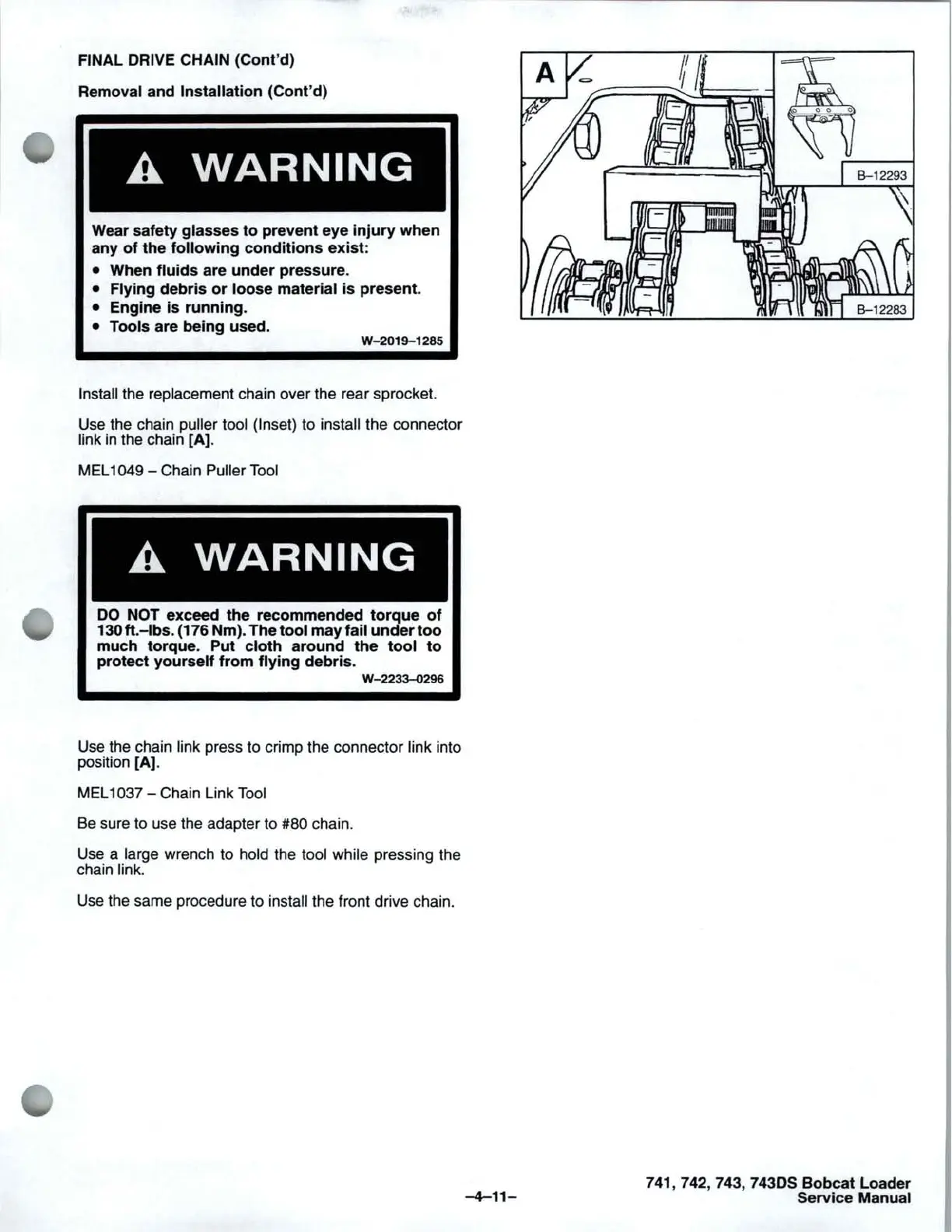

FINAL DRIVE CHAIN (Cont'd)
Removal and
Installation (Cont'd)
A
WARNING
Wear safety glasses
to
prevent eye
injury
when
any
of
the
following
conditions exist:
• When fluids are under pressure.
• Flying debris
or
loose material
is
present.
• Engine is running.
• Tools are being used.
W-2019-1285
Install the replacement chain over the rear sprocket.
Use the chain puller tool (Inset) to install the connector
link
in
the chain
[A]
.
MEL 1049 - Chain Puller Tool
A
WARNING
DO
NOT exceed the recommended
torque
of
130ft.-lbs.
(176 Nm). The
tool
mayfaiJ
under
too
much torque. Put cloth around the
tool
to
protect yourself from flying debris.
W-2233-0296
Use the chain link press to crimp the connector link into
position
[A].
MEL 1037 - Chain Link Tool
Be sure to use the adapter to #80 chain.
Use a
large wrench to hold the tool while pressing the
chain link.
Use the same procedure to install the front drive chain.
