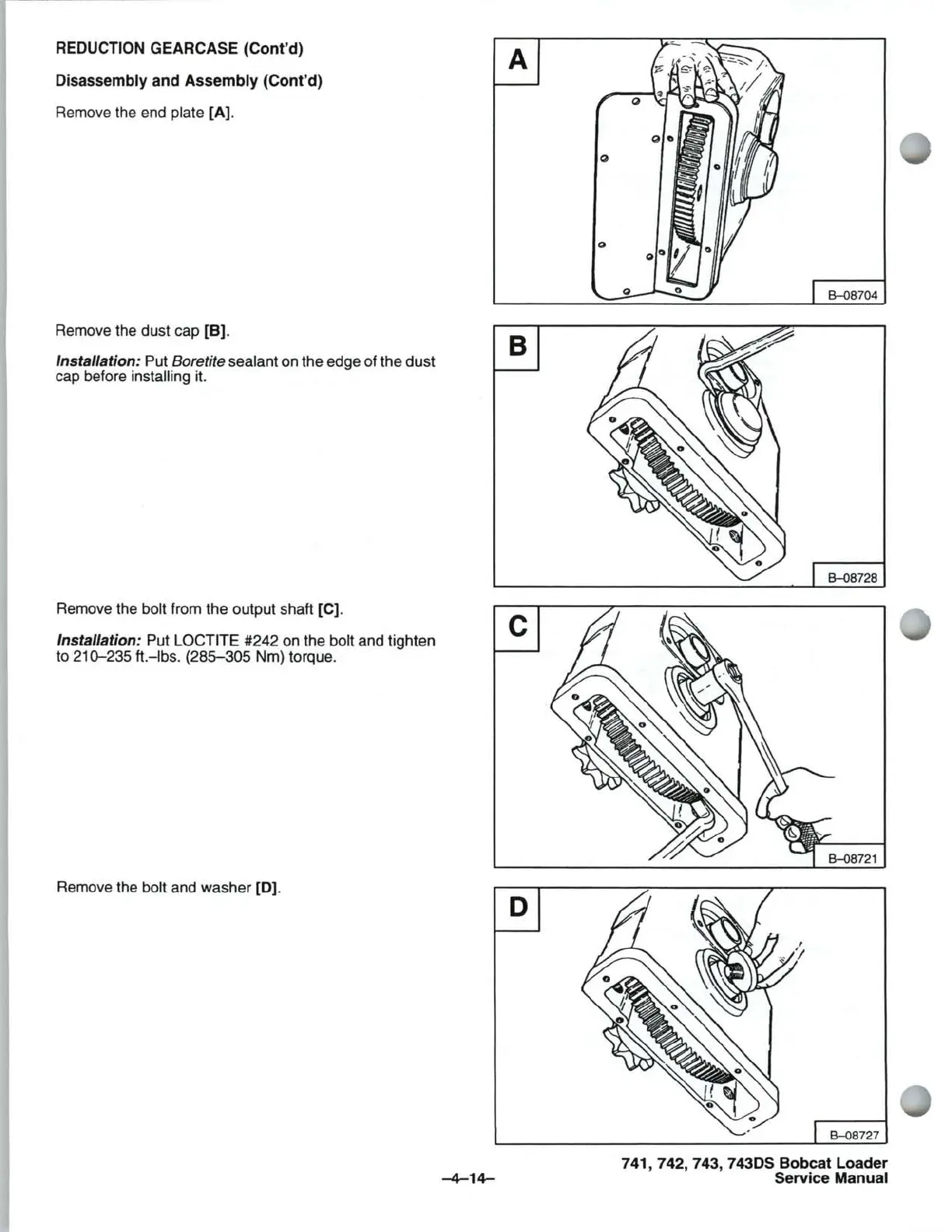

REDUCTION GEARCASE (Cont'd)
Disassembly
and Assembly (Cont'd)
Remove the end plate [A).
Remove the dust cap
[B] .
Installation: Put Boretite sealant on the edge of the dust
cap before installing it.
Remove the bolt from the output shaft [C).
Installation: Put LOCTITE #242 on the bolt and tighten
to
210-235 ft. -Ibs . (285-305 Nm) torque.
Remove the
bolt and washer [0].
--4-14-
A
B
c
o
B--08704
B--08727
741,742,743,74305 Bobcat Loader
Service Manual
