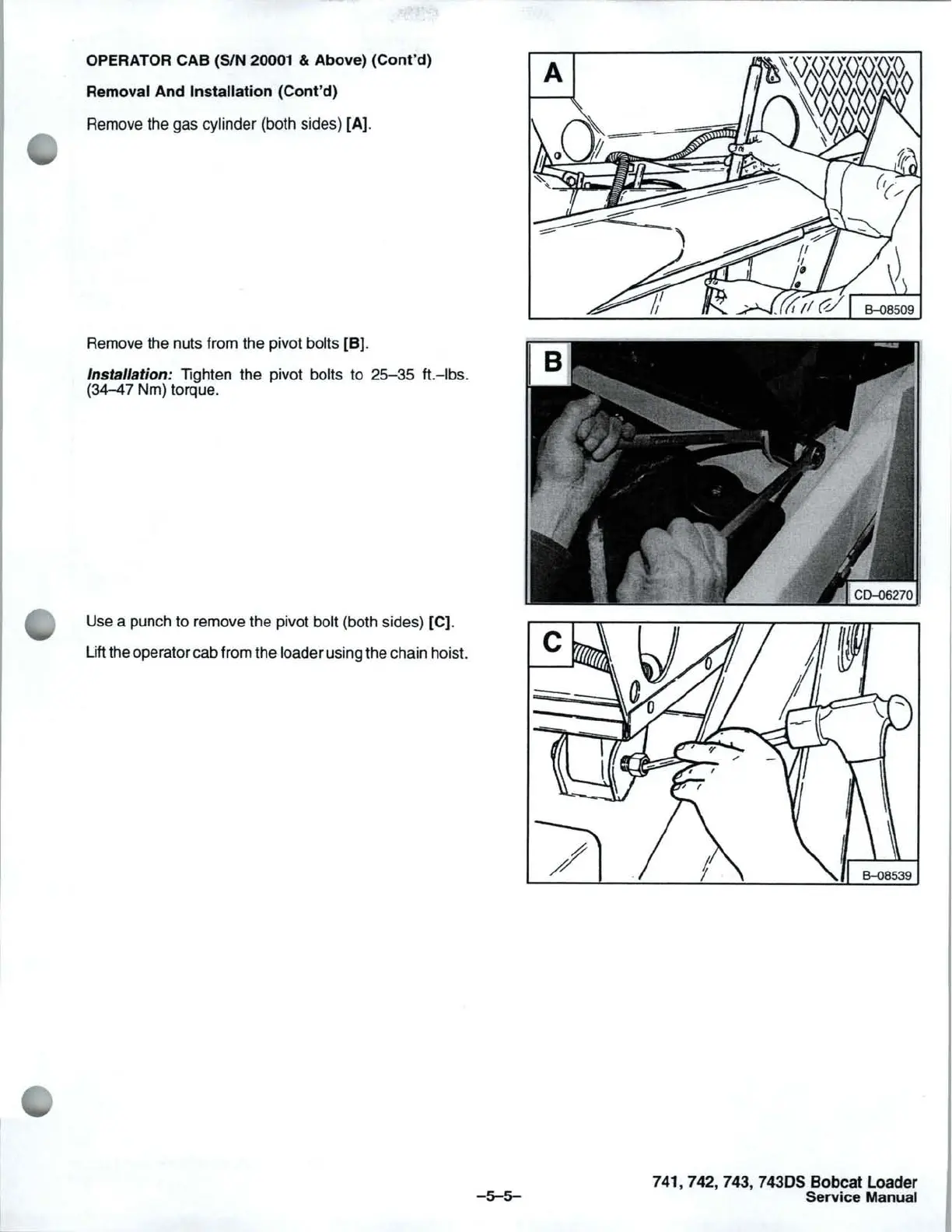

OPERATOR
CA8
(SIN 20001 & Above) (Cont'd)
Removal And Installation (Cont'd)
Remove the gas cylinder (both sides) [A].
Remove the nuts from the pivot bolts [8].
Installation: Tighten the pivot bolts to
25-35
ft.- Ibs.
(34-47 Nm) torque.
Use a punch to remove the pivot bolt (both sides) [C).
Lift
the operator cab from the loader using the chain hoist.
-5-5-
741, 742, 743, 7430S Bobcat
loader
Service Manual
