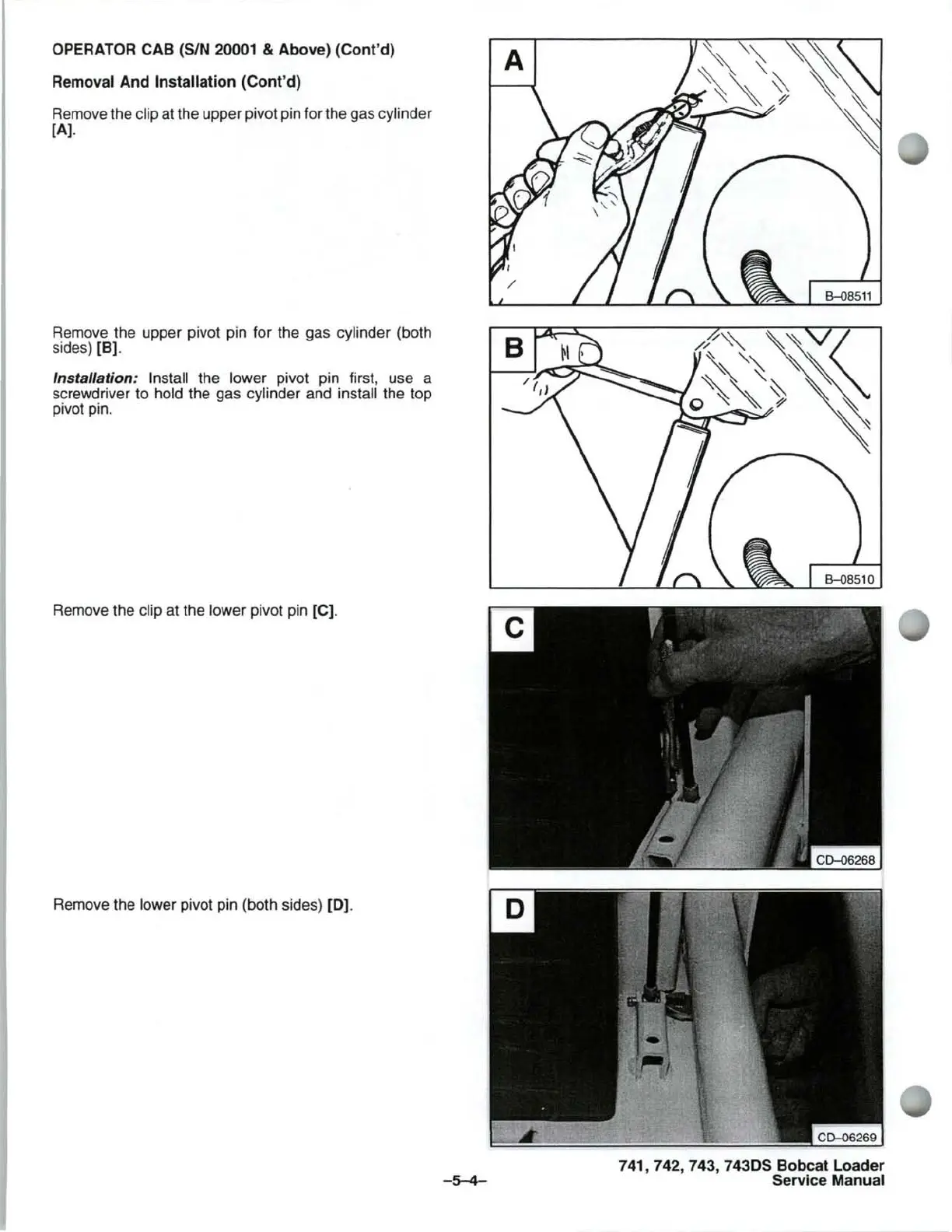

OPERATOR CAB (SIN 20001 & Above) (Cont'd)
Removal And Installation (Cont'd)
Remove the clip at the upper pivot pin for the gas cylinder
[A].
Remove the upper pivot pin for the gas cylinder (both
sides)
[B].
Installation: Install the lower pivot pin first, use a
screwdriver to hold the gas cylinder and
install the top
pivot pin.
Remove the clip at the lower pivot pin
[C].
Remove the lower pivot pin (both sides) [0].
-5-4-
