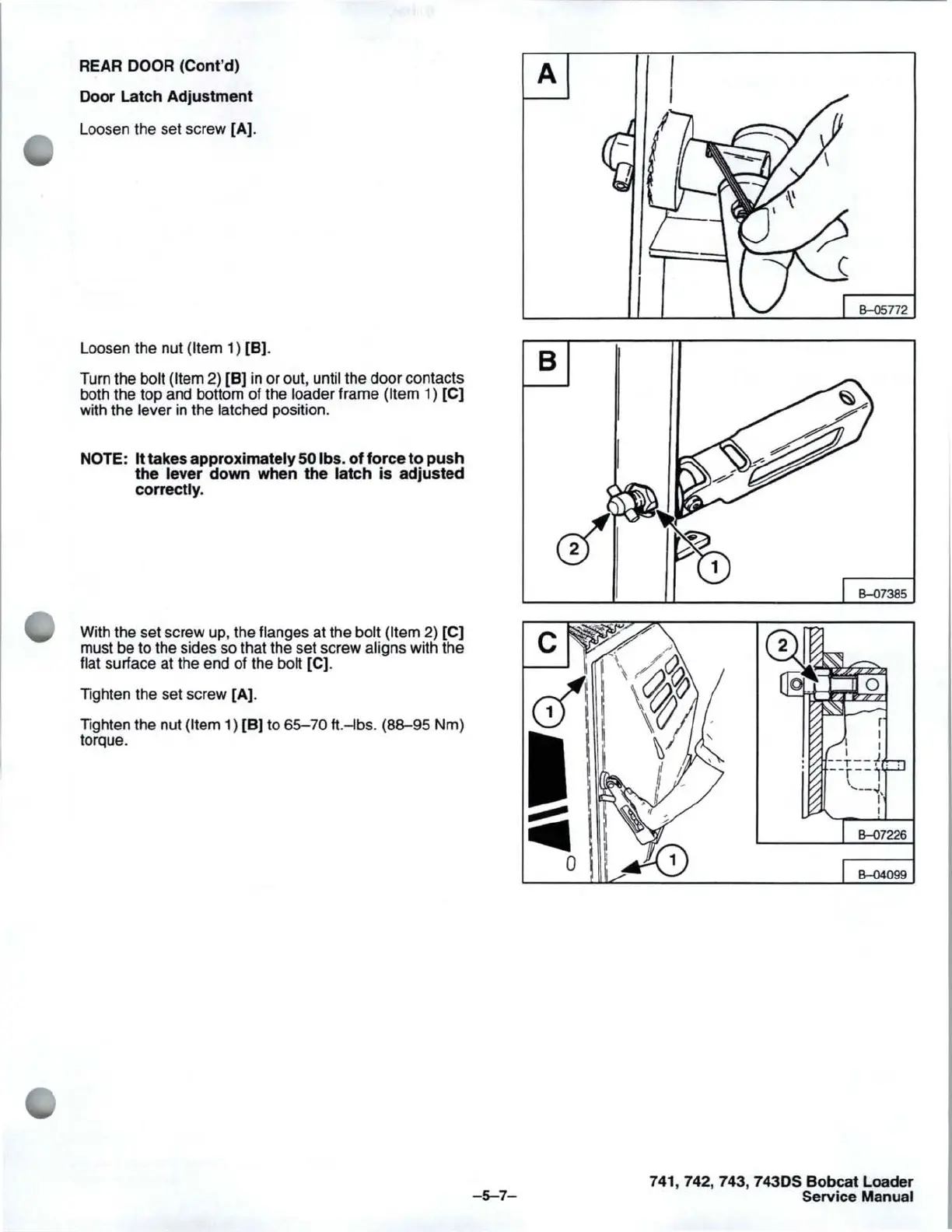

REAR DOOR (Cont'd)
Door
Latch
Adjustment
Loosen the set screw [AJ,
Loosen the nut
(Item 1)
(8).
Turn the bolt (Item 2)
[8]
in or out, until the door contacts
both the top and bottom of the
loader frame (Item 1)
[C]
with the lever
in
the latched position.
NOTE:
It
takes approximately 50 Ibs.
of
force
to
push
the lever
down
when the
latch
is
adjusted
correctly.
With the set screw up, the flanges at the bolt (Item 2)
[C]
must be to the sides so that the set screw aligns with the
flat surface at the end of the
bolt [C].
Tighten the set screw [A).
Tighten the nut
(Item 1)
[8]
to
65-70
tt.-Ibs.
(88-95
Nm)
torque.
