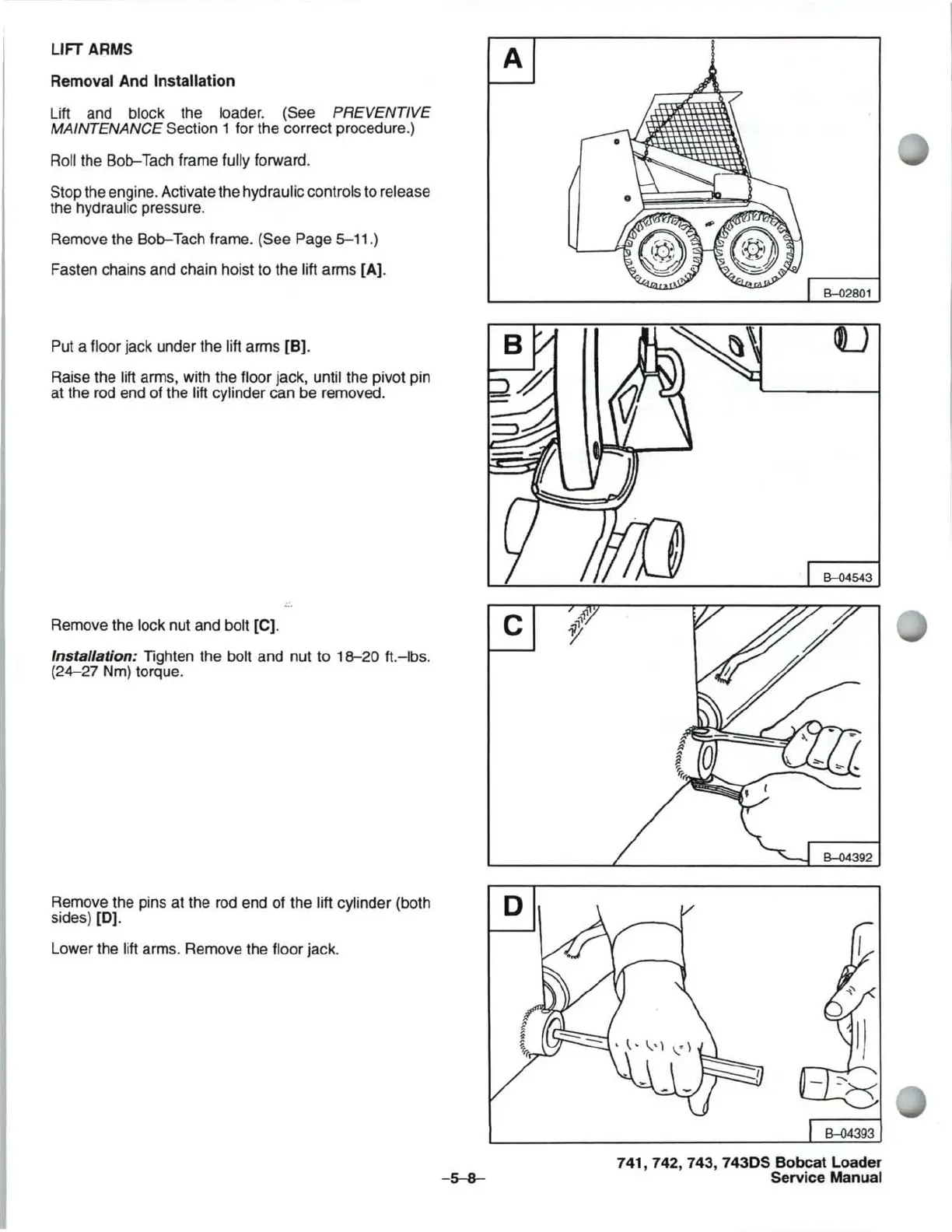

LIFT ARMS
Removal And Installation
Lift and block the loader.
(See PREVENTIVE
MAINTENANCE
Section 1 for the correct procedure.)
Roll the Bob-Tach frame fully forward.
Stop the engine. Activate the hydraulic controls to release
the hydraulic pressure.
Remove the Bob-Tach frame.
(See Page 5-11 .)
Fasten chains and chain hoist to the lift arms [A].
Put a floor jack under the lift arms [B].
Raise the
lift arms, with the floor jack, until the pivot pin
at the rod end of the lift cylinder can be removed.
Remove the lock nut and bolt [C].
Installation: Tighten the bolt and nut to
18-20
ft.-Ibs.
(24-27 Nm) torque.
Remove the pins at the rod end of the lift cylinder (both
sides)
(0).
Lower the lift arms. Remove the floor jack.
A
-5-8-
8-02801
741,742,743,74305
Bobcat Loader
Service Manual
