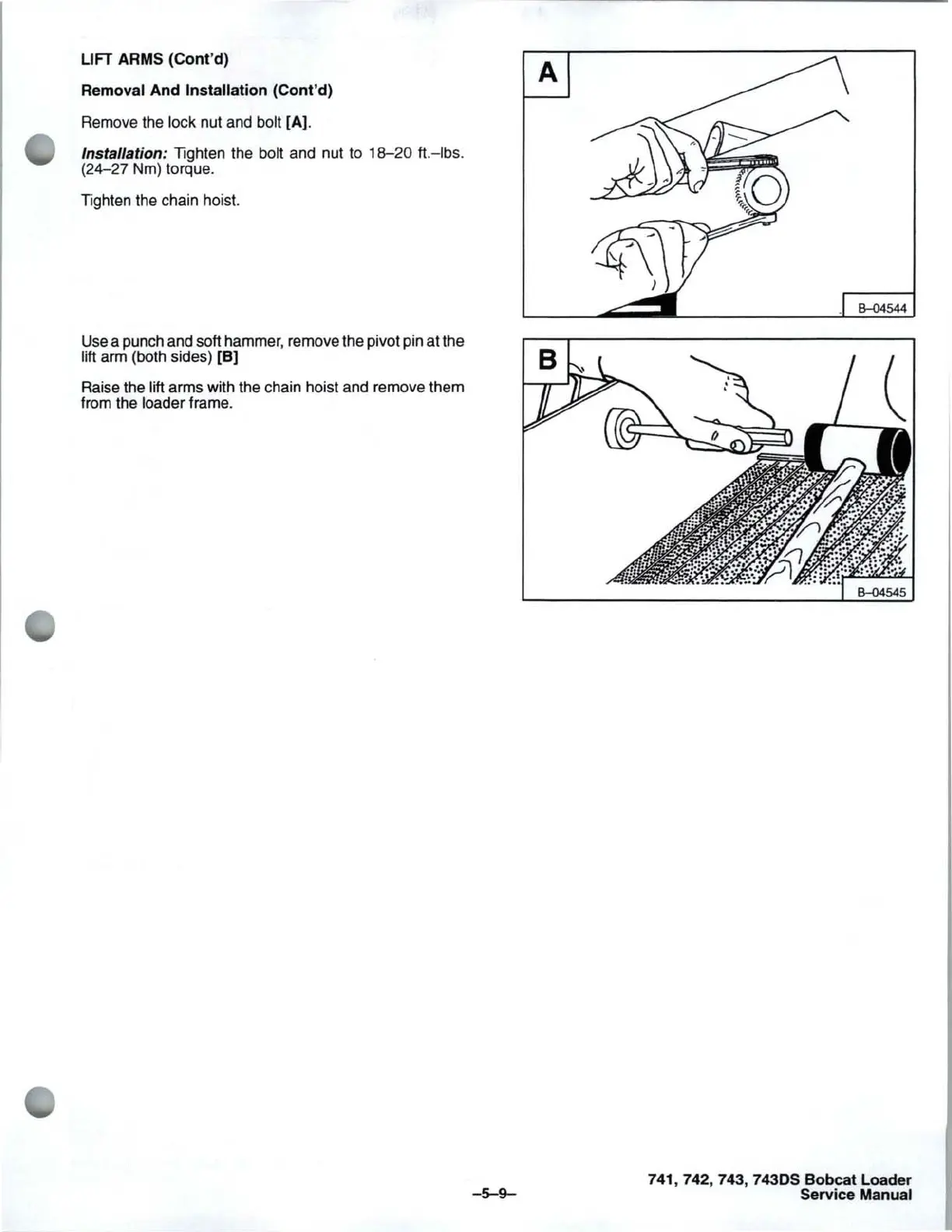

LIFT ARMS (Cont'd)
Removal And
Installation (Cont'd)
Remove the lock nut and bolt [A).
Installation: Tighten the bolt and nut to 18-20 ft.-Ibs.
(24-27 Nm) torque.
Tighten the chain hoist.
Use a punch and soft hammer, remove the pivot pin at the
lift arm (both sides) [B]
Raise the lift arms with the chain hoist and remove them
from the loader frame.
A
-5-9-
. B-04544
741,742,743, 7430S Bobcat Loader
Service Manual
