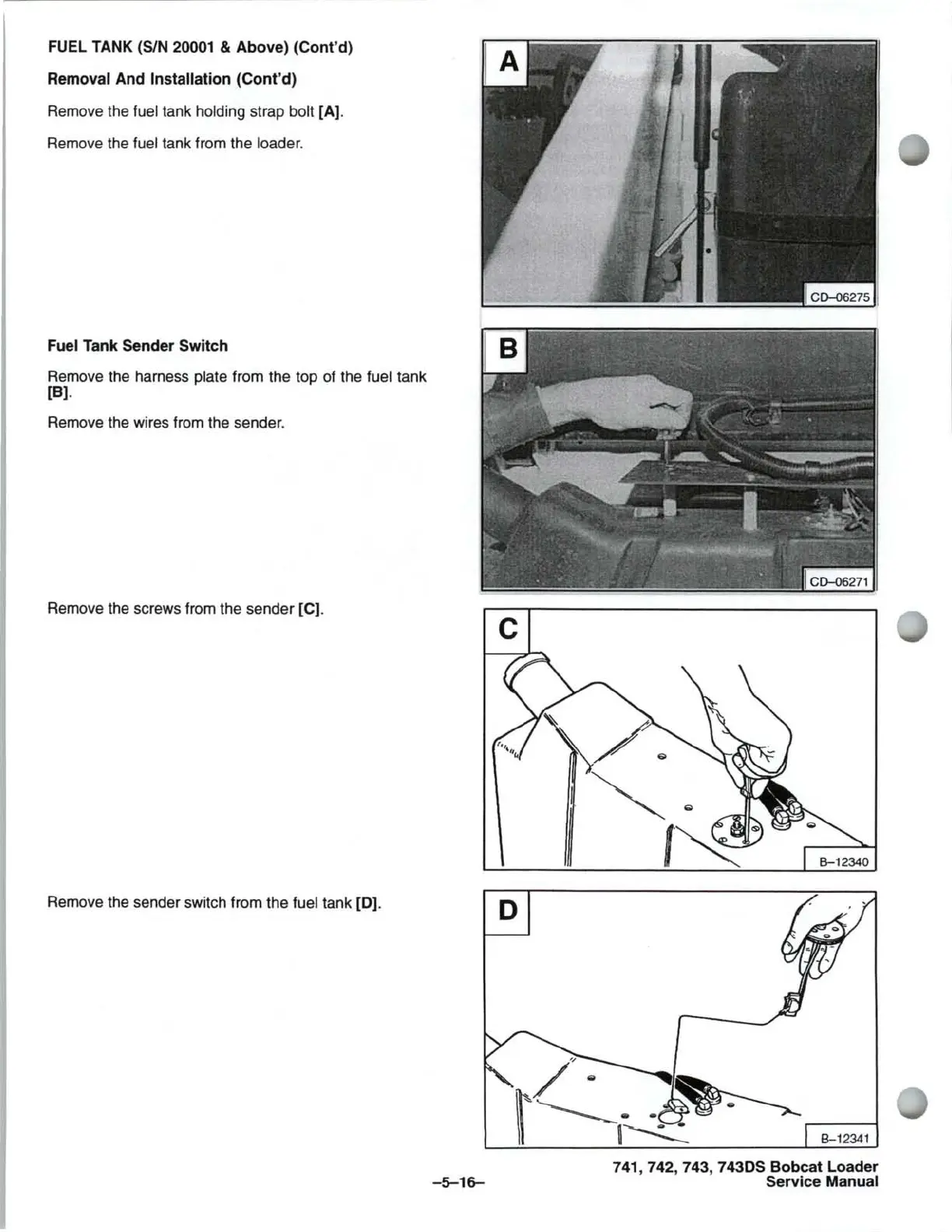

FUEL TANK (SIN 20001 & Above) (Cont'd)
Removal And Installation (Cont'd)
Remove the fuel tank holding strap bolt [A].
Remove the fuel tank from the loader.
Fuel Tank Sender Switch
Remove the harness plate from the top of the fuel tank
[B).
Remove the wires from the sender.
Remove the screws from the sender [C).
Remove the sender switch from the fuel tank [0] .
D
-5-16-
8-12341
741,742,743, 7430S Bobcat Loader
Service
Manual
