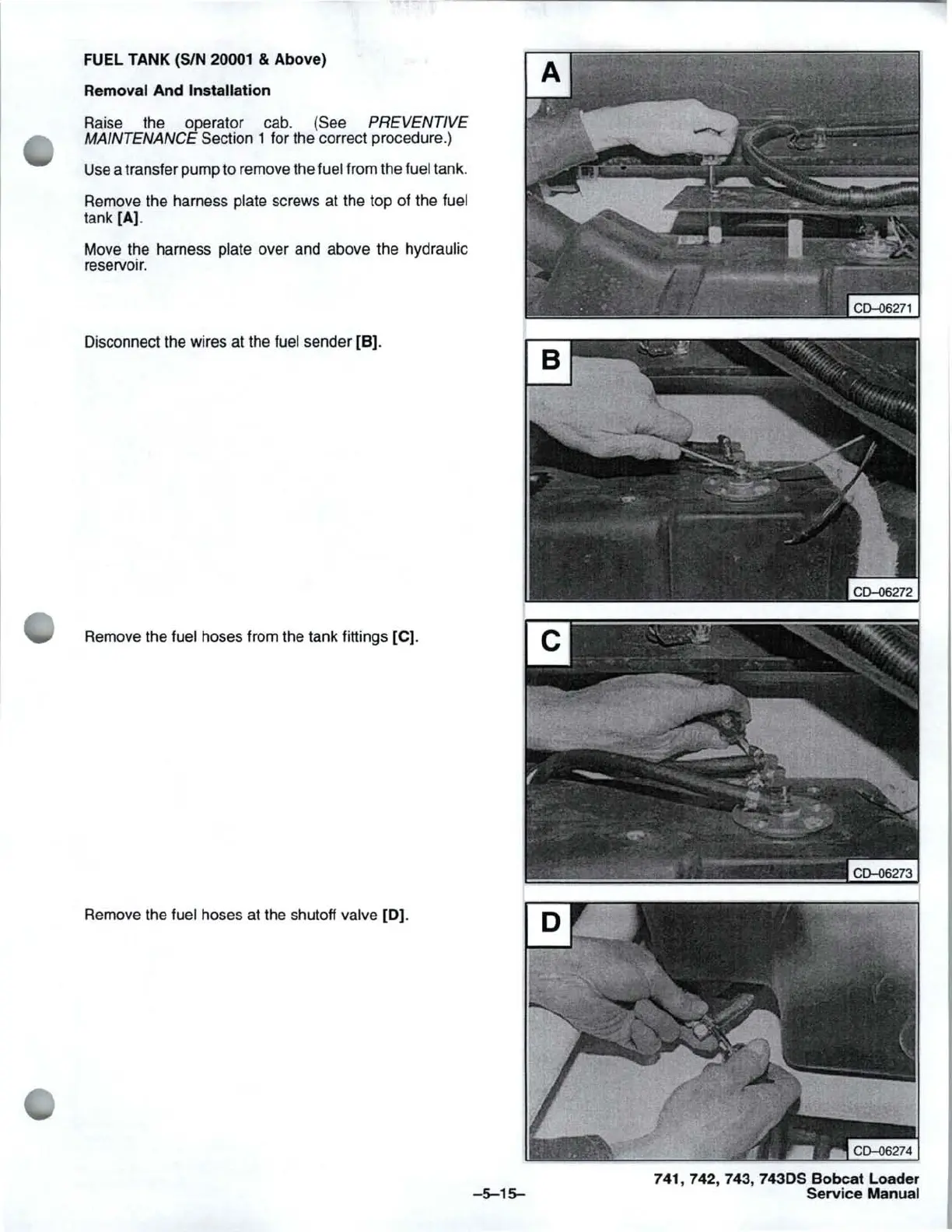

FUEL TANK (SIN 20001 & Above)
Removal And Installation
Raise the operator cab. (See PREVENTIVE
MAINTENANCE
Section 1 for the correct procedure.)
Use a transfer pump to remove the fuel from the fuel tank.
Remove the harness plate screws at the top of the fuel
tank [A].
Move the harness plate over and above the
hydraulic
reservoir.
Disconnect the wires at the fuel sender
[B].
Remove the fuel hoses from the tank fittings [C].
Remove the fuel hoses at the shutoff valve
[0].
