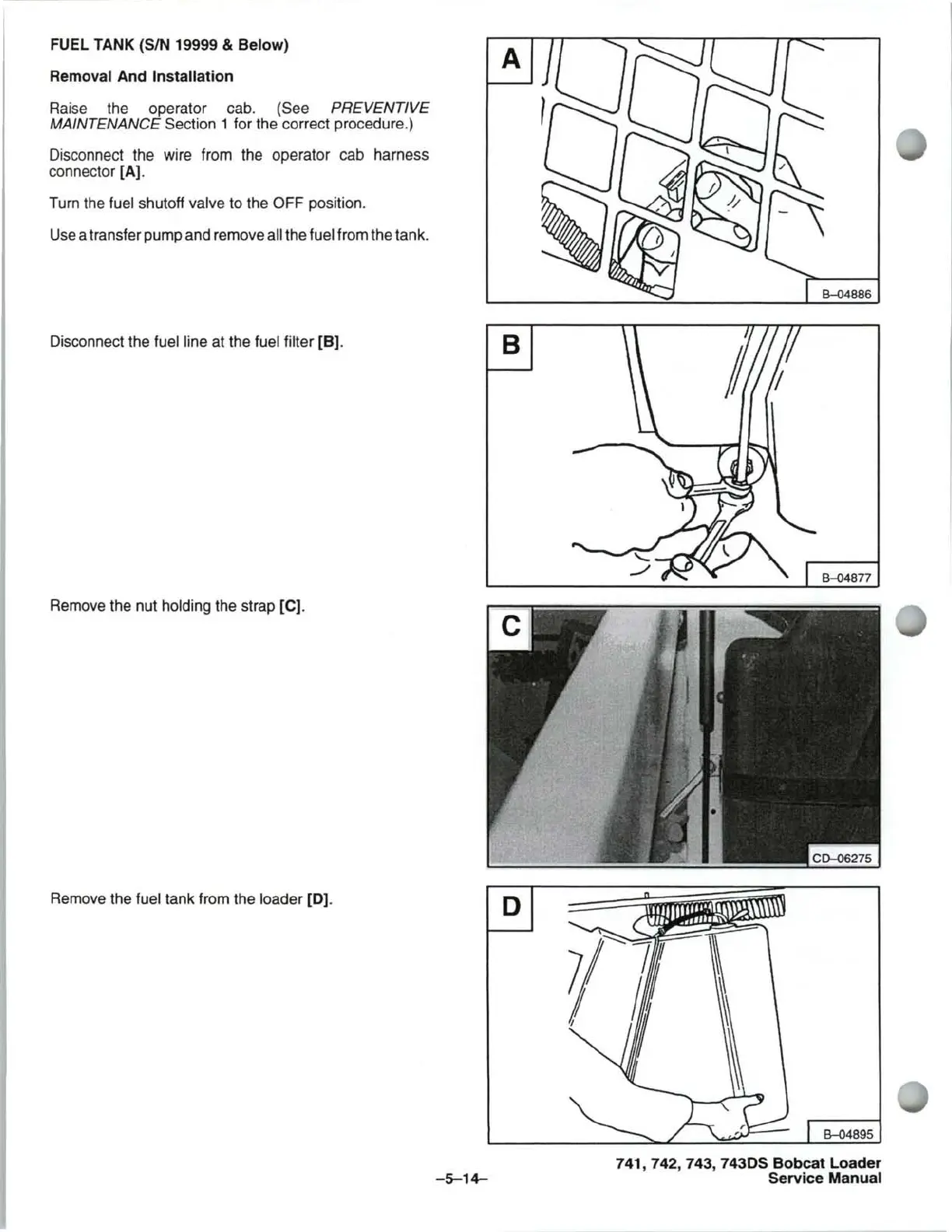

FUEL TANK (SIN 19999 & Below)
Removal
And Installation
Raise the operator cab. (See PREVENTIVE
MAINTENANCE Section 1 for the correct procedure.)
Disconnect the wire from the operator cab harness
connector
[A].
Turn the fuel shutoff valve to the OFF position.
Use
a transfer pump and remove all the fuel from the tank.
Disconnect the
fuel line at the fuel filter [B].
Remove the nut holding the strap [C].
Remove the fuel tank from the loader [0].
A
-5-14-
741 742 743
7430S
Bobcat Loader
•
••
Service Manual
