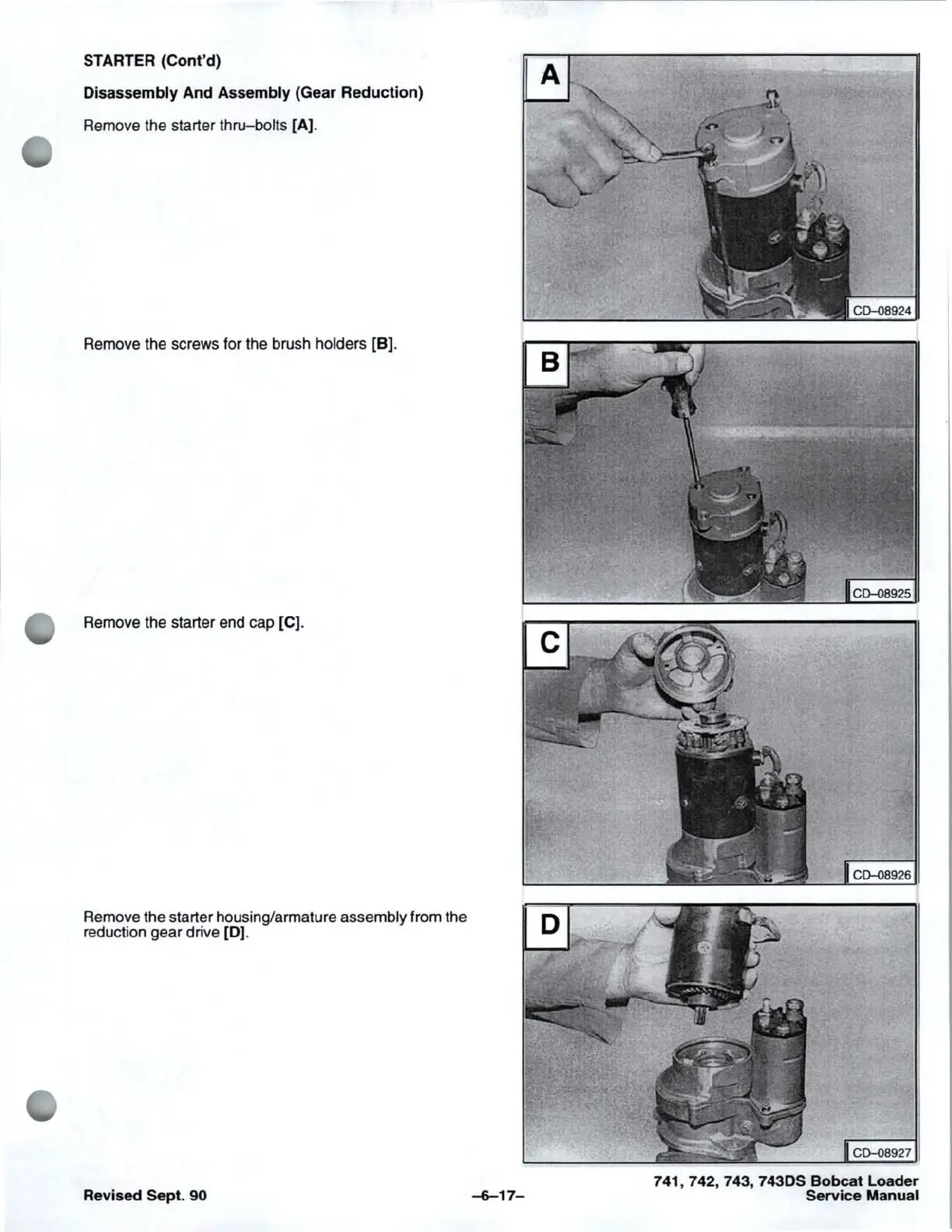

STARTER (Cont'd)
Disassembly And Assembly (Gear Reduction)
Remove the starter thru-bolts [A].
Remove the screws for the brush holders [B].
Remove the starter end cap [C].
Remove the starter housing/armature assembly from the
reduction gear drive
[0].
Revised Sept. 90 -6-17-
741, 742, 743, 7430S Bobcat Loader
Service
Manual
