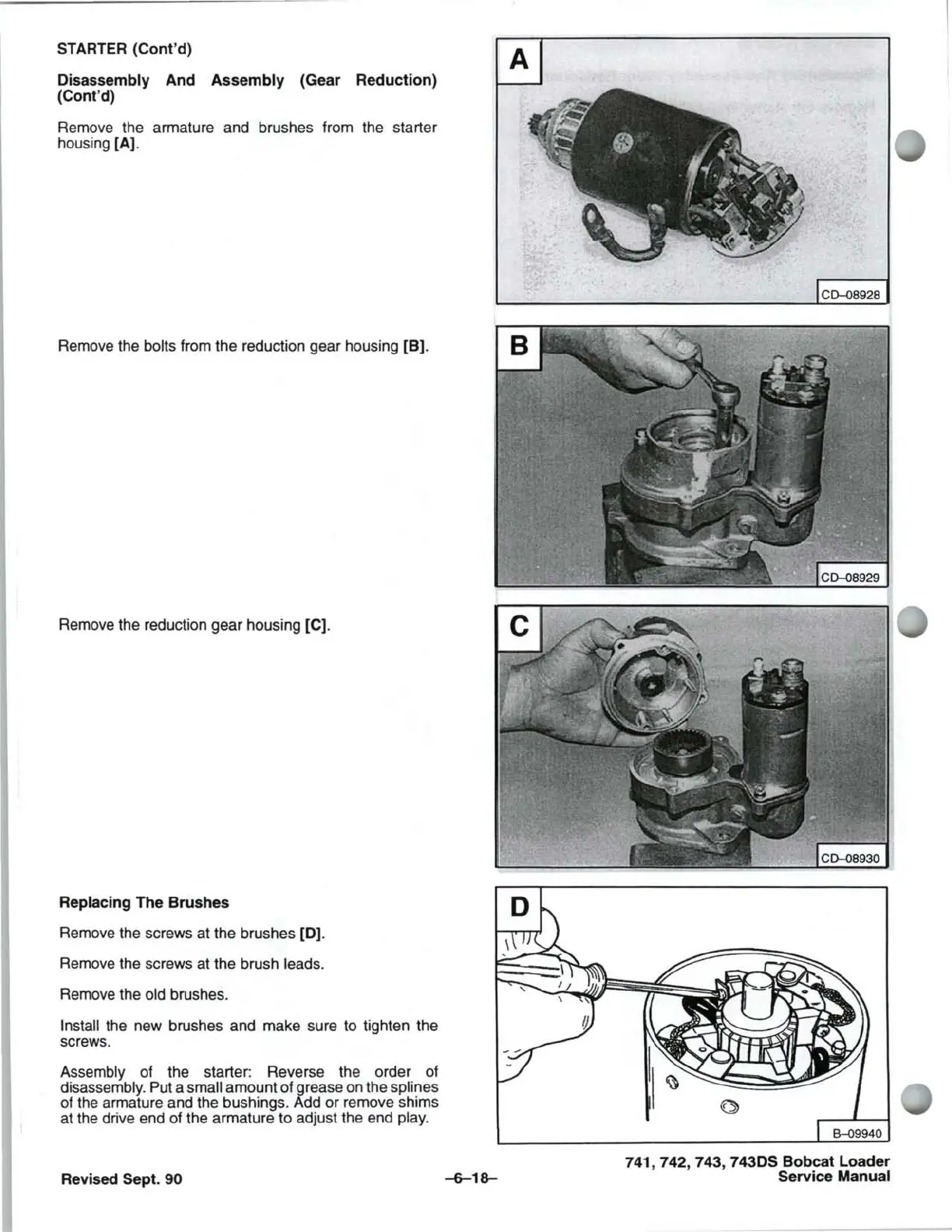

STARTER (Cont'd)
Disassembly And
Assembly (Gear Reduction)
(Cont'd)
Remove the armature and brushes from the starter
housing
[A].
Remove the bolts from the reduction gear housing [B].
Remove the reduction gear housing [C].
Replacing The Brushes
Remove the screws at the brushes [0].
Remove the screws at the brush leads.
Remove the old brushes.
Install the new brushes and make sure to tighten the
screws.
Assembly of the starter: Reverse the order of
disassembly. Put a small amount of grease
on
the splines
of the armature and the bushings. Add or remove shims
at
the drive end of the armature
to
adjust the end play.
