ENGINE
SERVICE (Cont'd)

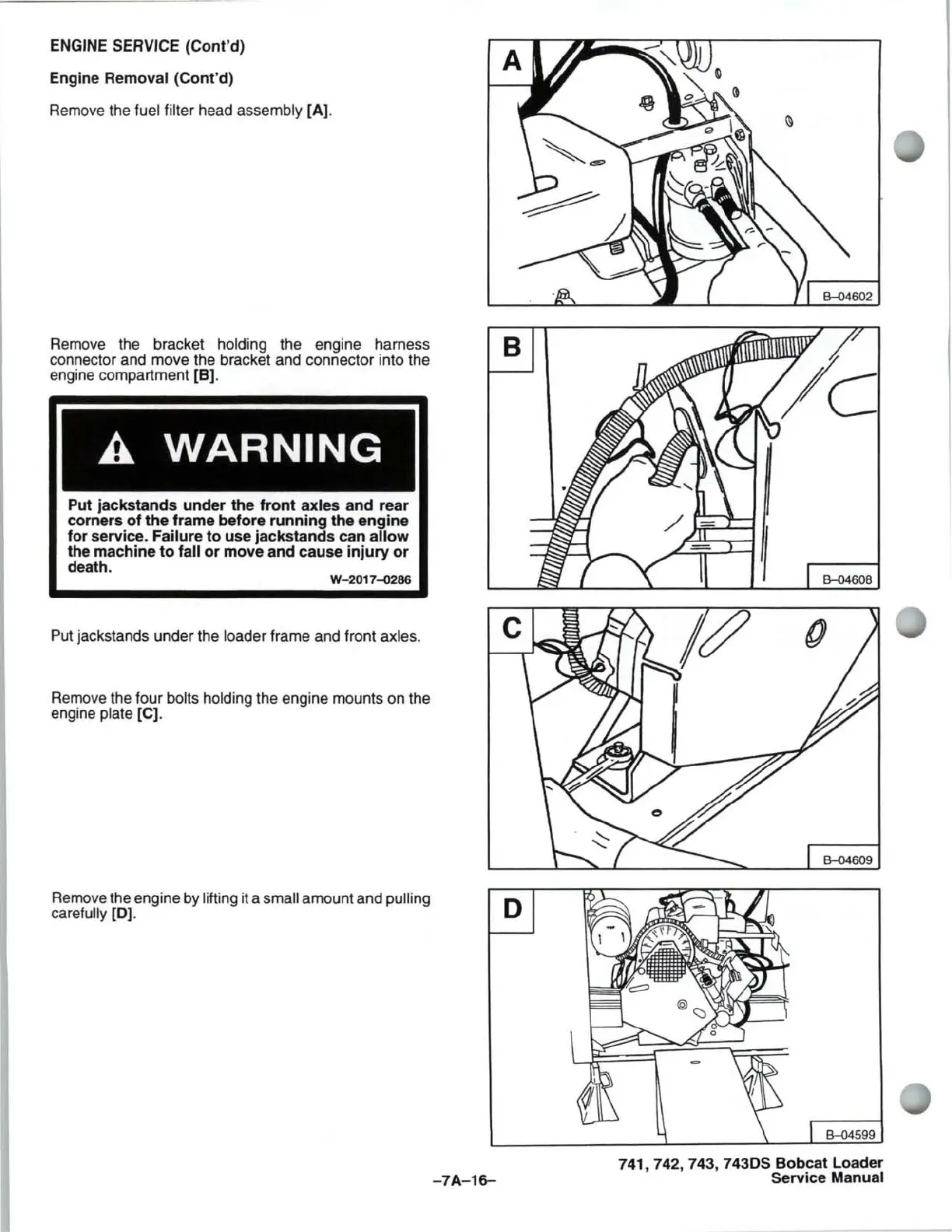

Engine Removal (Cont'd)
Remove the fuel filter head assembly [A).
Remove the bracket
holding the engine harness B
connector and move the bracket and connector into the
engine compartment
[B]
.
,
I
A
WARNING
Put jackstands under the
front
axles and rear
corners
of
the frame before running the engine
for service. Failure
to
use jackstands can
allow
the machine
to
fall
or
move and cause
injury
or
death.
W-2017-o286
Put jackstands under the loader frame and front axles.
Remove the four bolts holding the engine mounts on the
engine
plate [C).
c
Remove the engine by lifting
it
a small amount and pulling D
carefully
[0].
8-04608
8-04609
741, 742, 743, 7430S Bobcat Loader
-7A-16-
Service Manual
