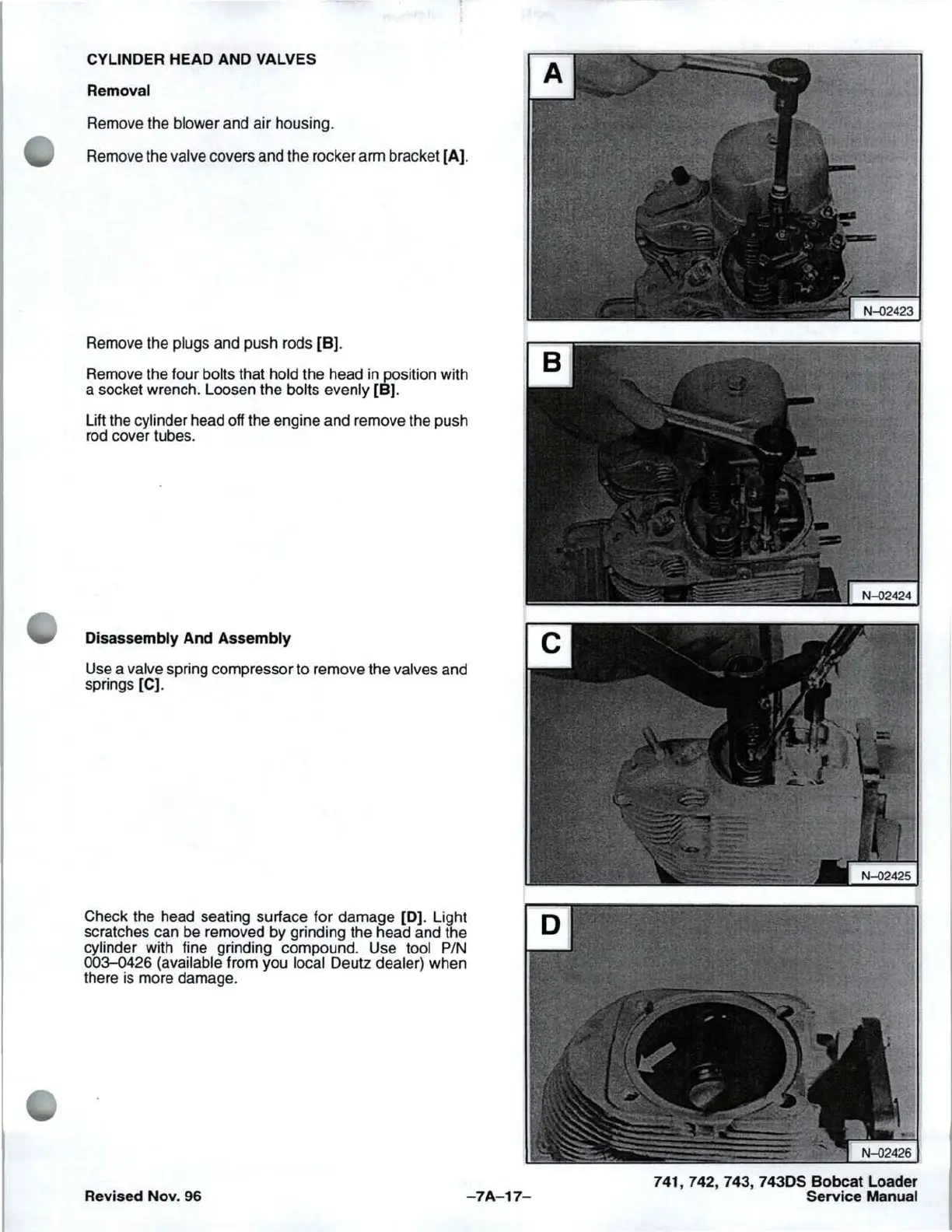

CYLINDER HEAD AND VALVES
Removal
Remove the blower and air housing.
Remove the valve covers and the rocker arm bracket [A).
Remove the plugs and push rods [B).
Remove the four
bolts that hold the head
in
position with
a socket wrench. Loosen the
bolts evenly
[B].
Lift the cylinder head off the engine and remove the push
rod cover tubes.
Disassembly
And
Assembly
Use a valve spring compressor to remove the valves and
springs [C].
Check the head seating surface for damage
[0].
Light
scratches can be removed by grinding the head and the
cylinder with fine grinding compound. Use tool PIN
003-0426
(available from you local Deutz dealer) when
there is more damage.
