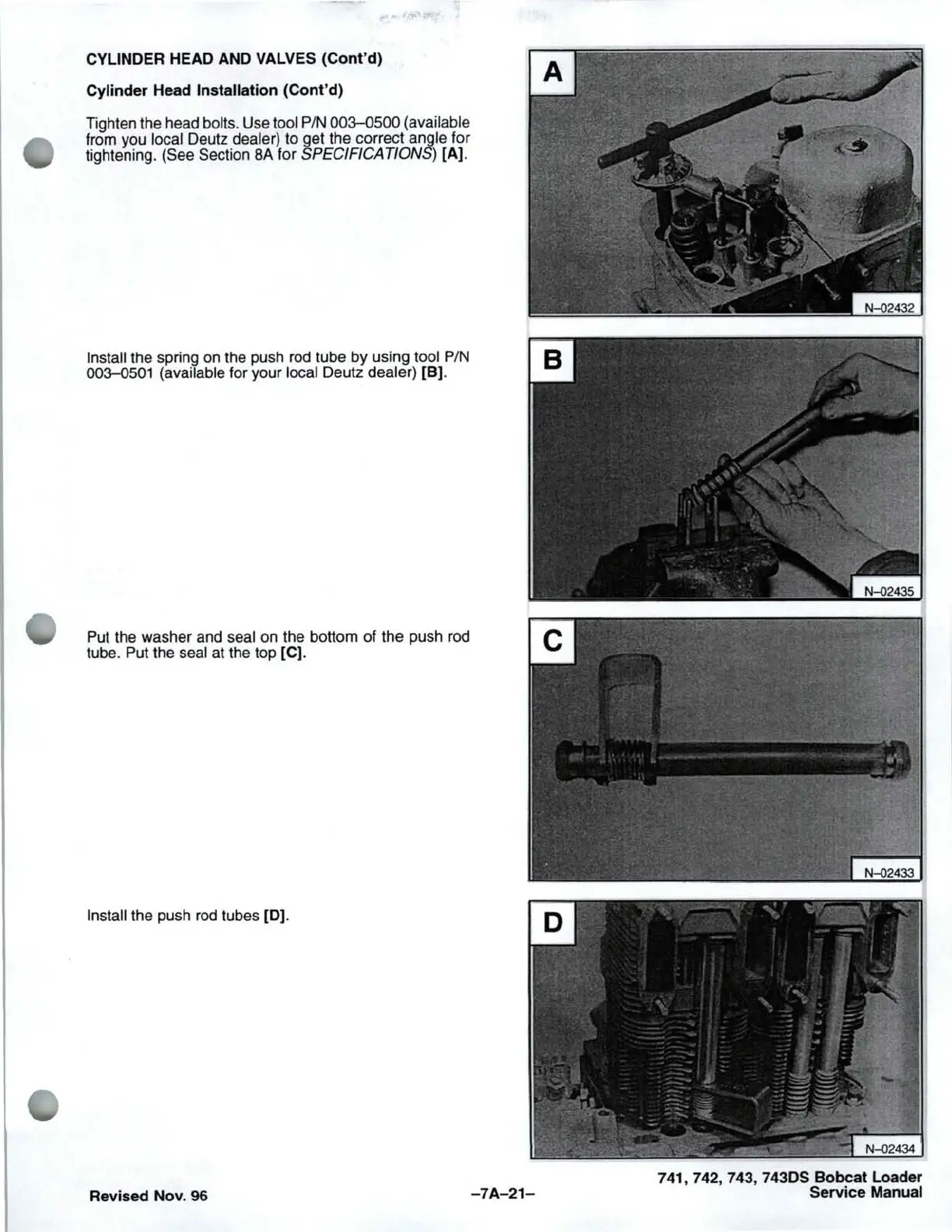

CYLINDER HEAD AND VALVES (Cont'd)
Cylinder Head Installation (Cont'd)
Tighten the head bolts. Use tool
PIN
003-0500
(available
from you local Deutz dealer) to get the correct angle for
tightening. (See Section 8A for
SPECIFICATIONS) [A).
Install the spring
on
the push rod tube by using tool
PIN
003-0501 (available for your local Deutz dealer) [B).
Put the washer and seal on the bottom of the push rod
tube.
Put the seal at the top [C).
Install the push
rod
tubes [0).
Revised Nov. 96
-7A-21-
741, 742, 743,
7430S
Bobcat Loader
Service
Manual
