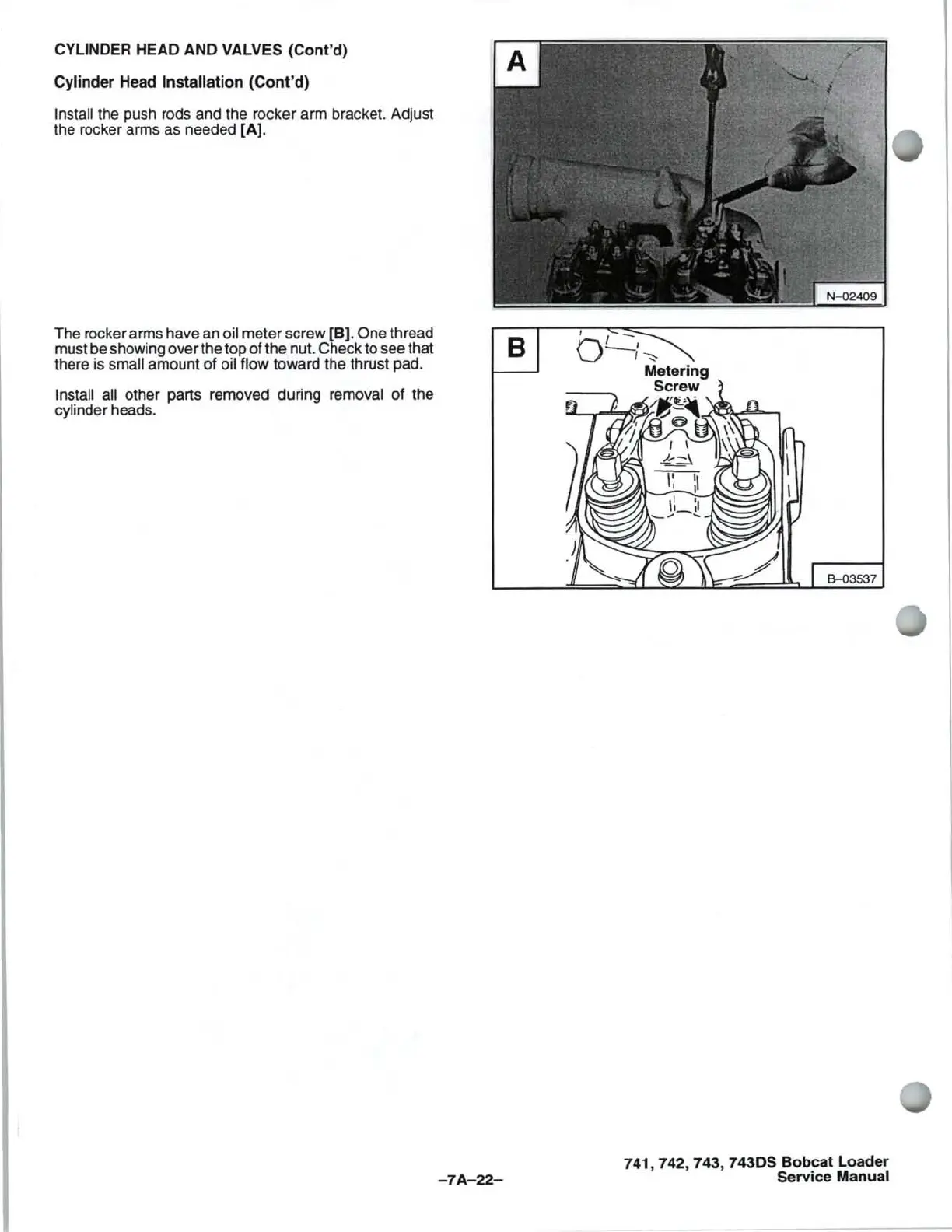

CYLINDER HEAD AND VALVES (Cont'd)
Cylinder Head Installation (Cont'd)
Install the push rods and the rocker arm bracket. Adjust
the rocker arms as needed
[A).
The rocker arms have an oil meter screw
[B]
. One thread
must be showing over the top of the nut. Check to see that
B
there is small amount of oil flow toward the thrust pad.
Install all other parts removed during removal of the
cylinder heads.
-7A-22-
B-03537
741, 742, 743, 743DS Bobcat Loader
Service Manual
