CYLINDER, PISTONS AND CONNECTING RODS A
(Cont'd)
Disassembly
And
Assembly (Cont'd)

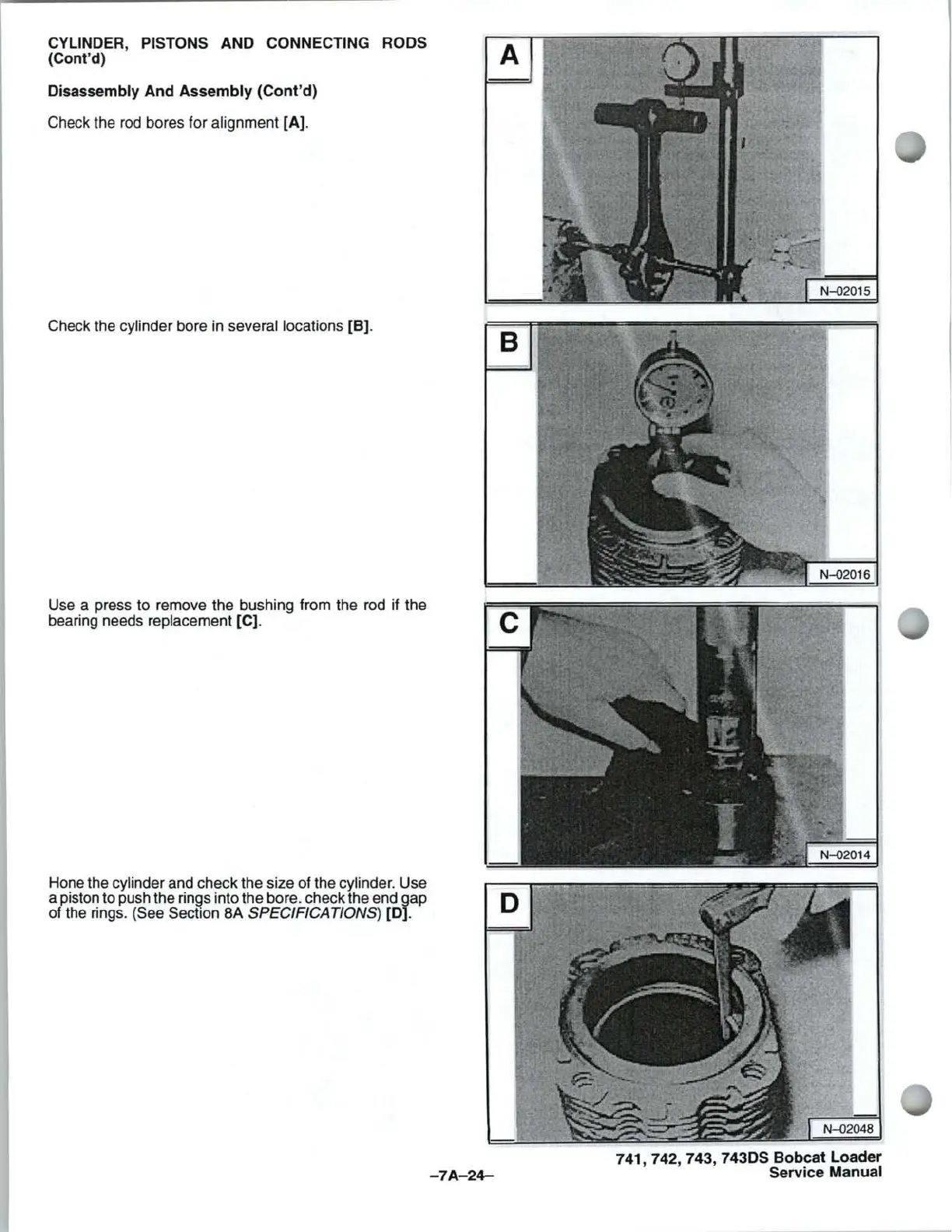

Check the rod bores for alignment [AJ.
Check the cylinder bore in several locations
[B).
Use a press to remove the bushing from the rod if the
bearing needs replacement
[C).
Hone the cylinder and check the size of the cylinder. Use
a piston to push the rings into the bore. check the end gap
of the rings.
(See Section 8A SPECIFICATIONS) [0).
