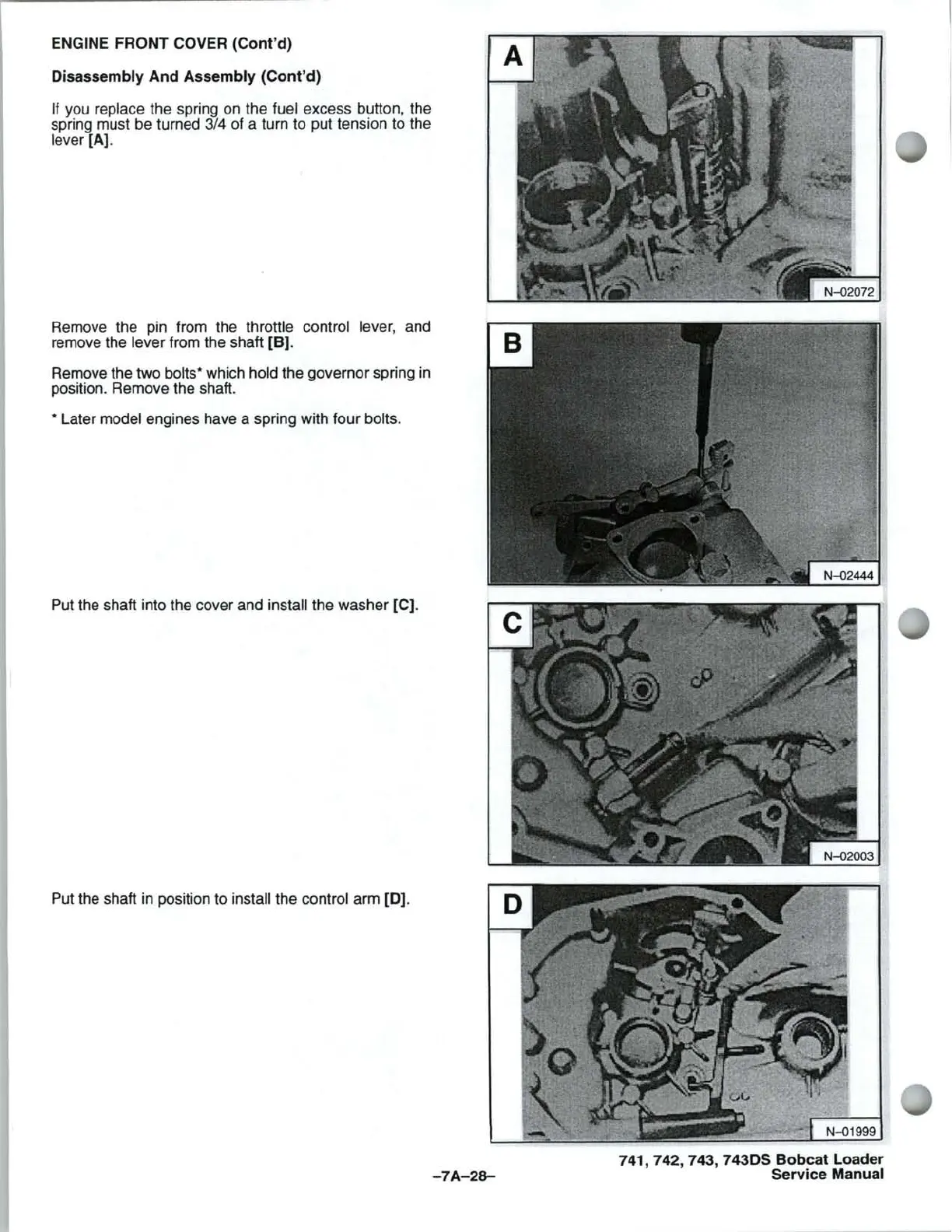

ENGINE FRONT COVER (Cont'd)
Disassembly And Assembly (Cont'd)
If you replace the spring on the fuel excess button, the
spring must be turned 3/4 of a turn to put tension to the
lever [AJ.
Remove the pin from the throttle control lever, and
remove the lever from the shaft [B].
Remove the two bolts* which hold the governor spring
in
position. Remove the shaft.
* Later
model engines have a spring with four bolts.
Put the shaft into the cover and install the washer [C).
Put the shaft in position to install the control arm [0].
-7A-28-
741, 742, 743, 7430S Bobcat Loader
Service
Manual
