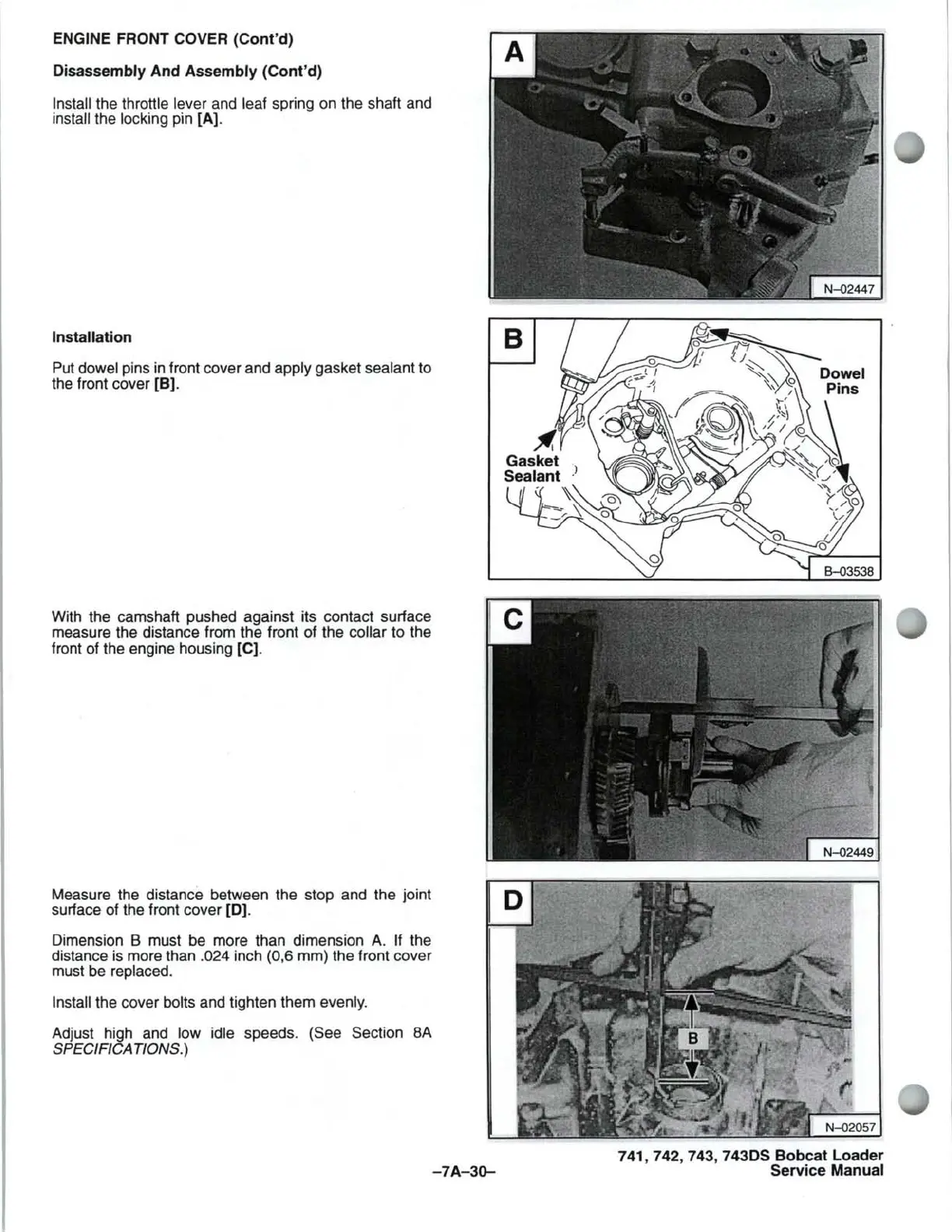

ENGINE FRONT COVER (Cont'd)
Disassembly And Assembly (Cont'd)
Install the throttle lever and leaf spring on the shaft and
install the locking pin
[Al
Installation
Put dowel pins
in
front cover and apply gasket sealant to
the front cover
[B).
With the camshaft pushed against its contact surface
measure the distance from the front of the
collar to the
front of the engine housing
[C).
Measure the distance between the stop and the joint
surface of the front cover
[0).
Dimension B must be more than dimension
A.
If the
distance
is
more than .024 inch (0,6 mm) the front cover
must be
replaced.
Install
the cover bolts and tighten them evenly.
Adjust high and low idle speeds. (See Section
8A
SPECIFICA TlONS.)
-7A-3D-
741,742,743,
7430S
Bobcat Loader
Service Manual
