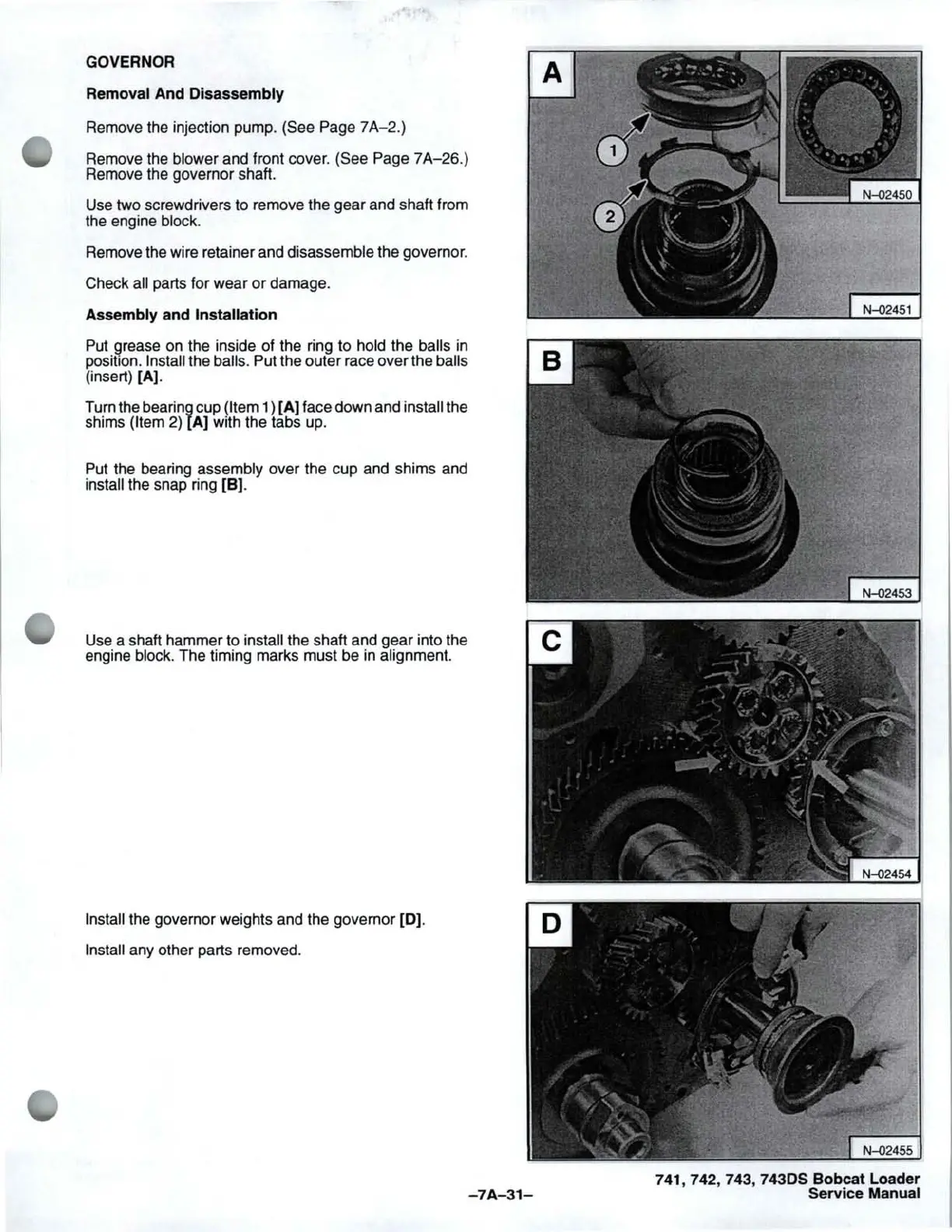

GOVERNOR
Removal
And Disassembly
Remove the injection pump. (See Page
7A-2
.)
Remove the
blower and front cover. (See Page
7A-26.)
Remove the governor shaft.
Use two screwdrivers to remove the
gear
and shaft from
the engine
block.
Remove the wire retainer and disassemble the governor.
Check
all parts for wear
or
damage.
Assembly and Installation
Put grease on the inside of the ring to hold the balls in
position.
Install the balls. Put the outer race over the balls
(insert) [A).
Turn the bearing cup (Item 1 ) [A] face down and install the
shims
(Item 2) [A] with the tabs up.
Put the bearing
assembly over the cup and shims and
install the snap ring [B).
Use a shaft hammer to install the shaft and
gear
into the
engine
block. The timing marks must be in alignment.
Install
the governor weights and the governor (0).
Install any other parts removed.
-7A-31-
741, 742, 743,
7430S
Bobcat Loader
Service Manual
