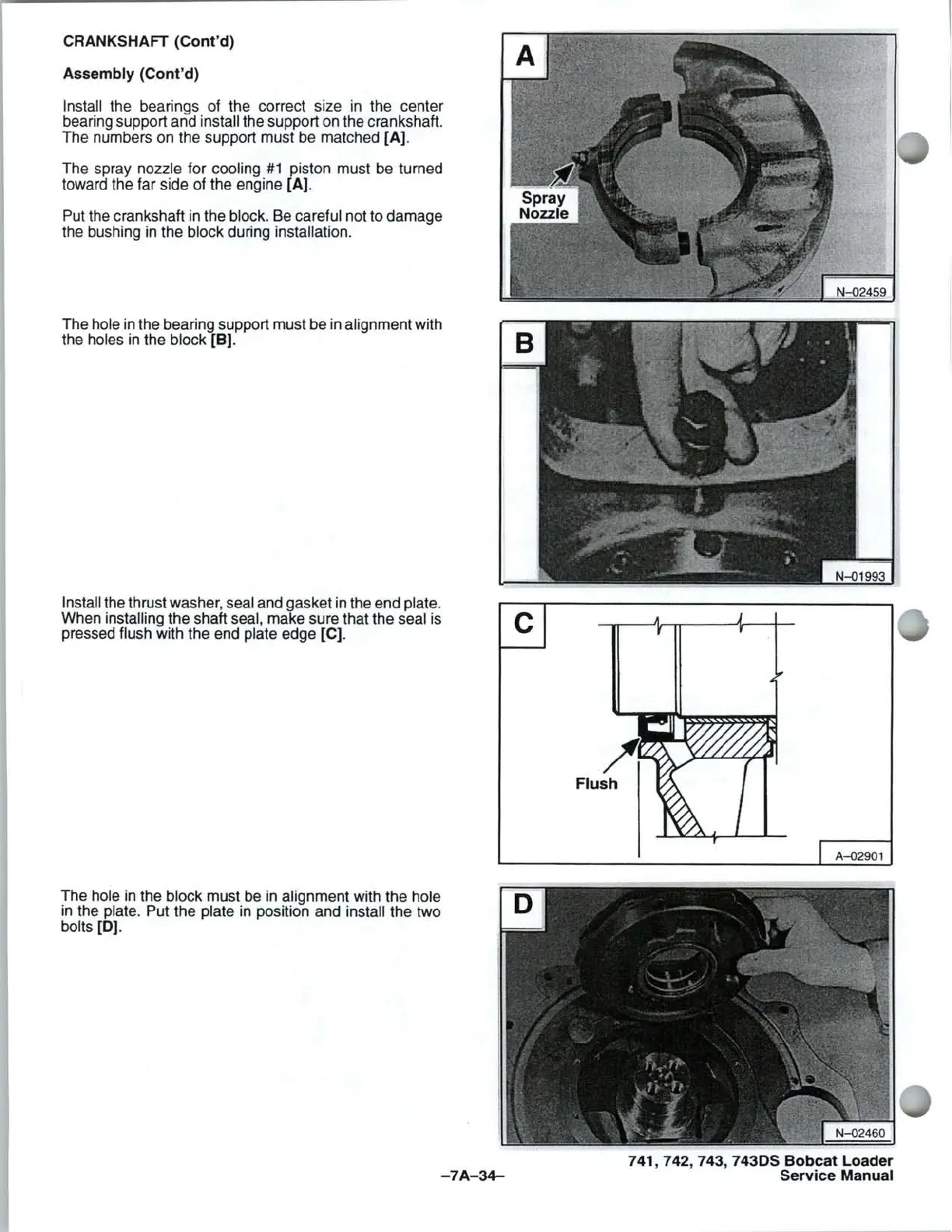

CRANKSHAFT (Cont'd)
Assembly (Cont'd)
Install the bearings of the correct size
in
the center
bearing support and install the support on the crankshaft.
The numbers on the support must be matched
[A).
The spray nozzle for cooling
#1
piston must be turned
toward the far side of the engine [A).
Put the crankshaft
in
the block. Be careful not to damage
the bushing
in
the block during installation.
The
hole
in
the bearing support must be
in
alignment with
the holes
in
the block [B).
Install the thrust washer, seal and gasket
in
the end plate.
When installing the shaft seal, make sure that the seal is
pressed
flush with the end plate edge [C).
The hole
in
the block must be
in
alignment with the hole
in
the plate. Put the plate
in
position and install the two
bolts
[OJ
.
