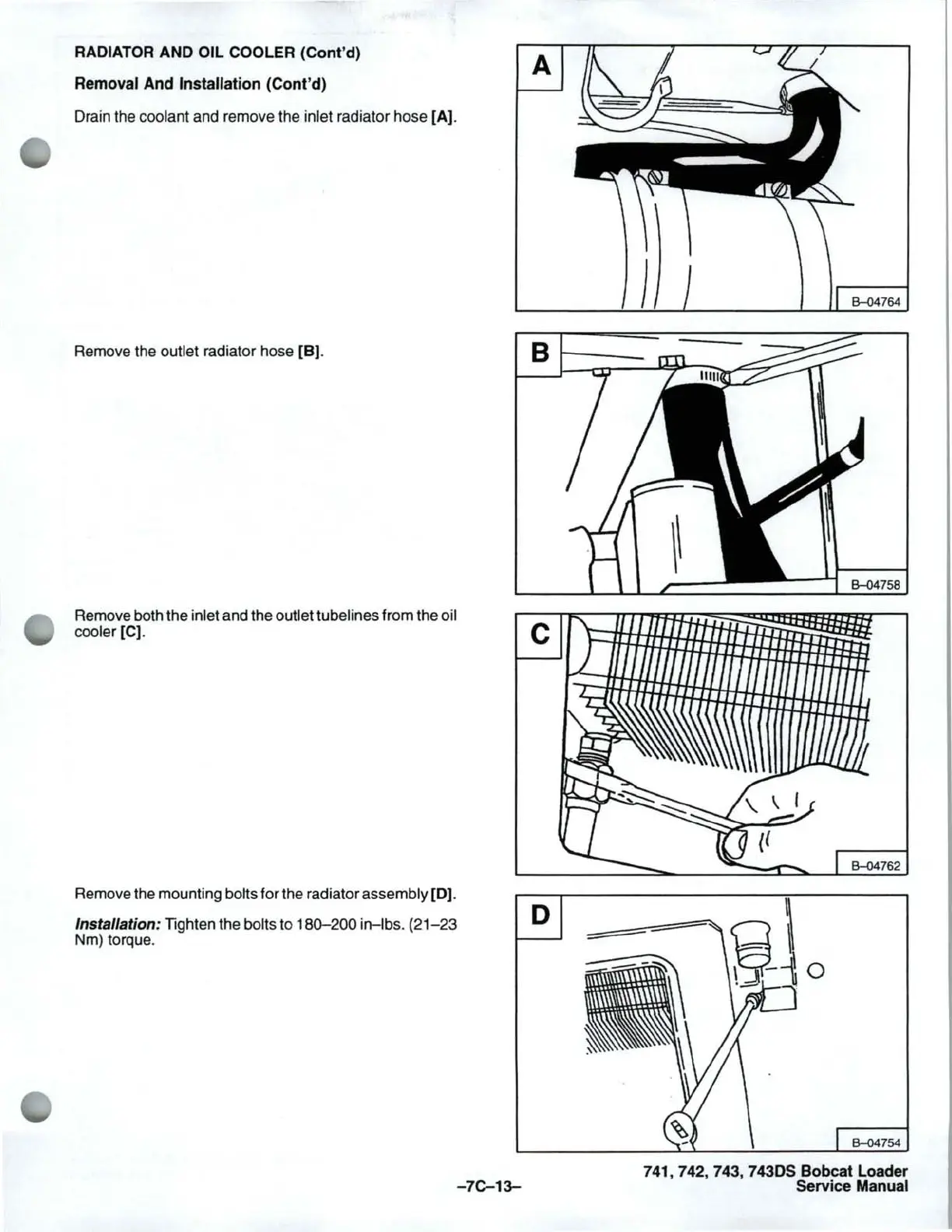

RADIATOR AND OIL COOLER (Cont'd)
Removal And
Installation (Cont'd)
Drain the
coolant and remove the inlet radiator hose [A].
A
Remove the outlet radiator hose [B]. B
l-=-J-c;r-~~~Z:::
Remove both the inlet and the outlet tubelines from the oil
rc:TT";~~rJ1rJjrtmr;m~~~irl
cooler [C]. C
Remove the mounting bolts for the radiator assembly
[0]
.
Installation: Tighten the bolts to
180-200
in-Ibs.
(21-23
Nm) torque.
-7C-13-
D
