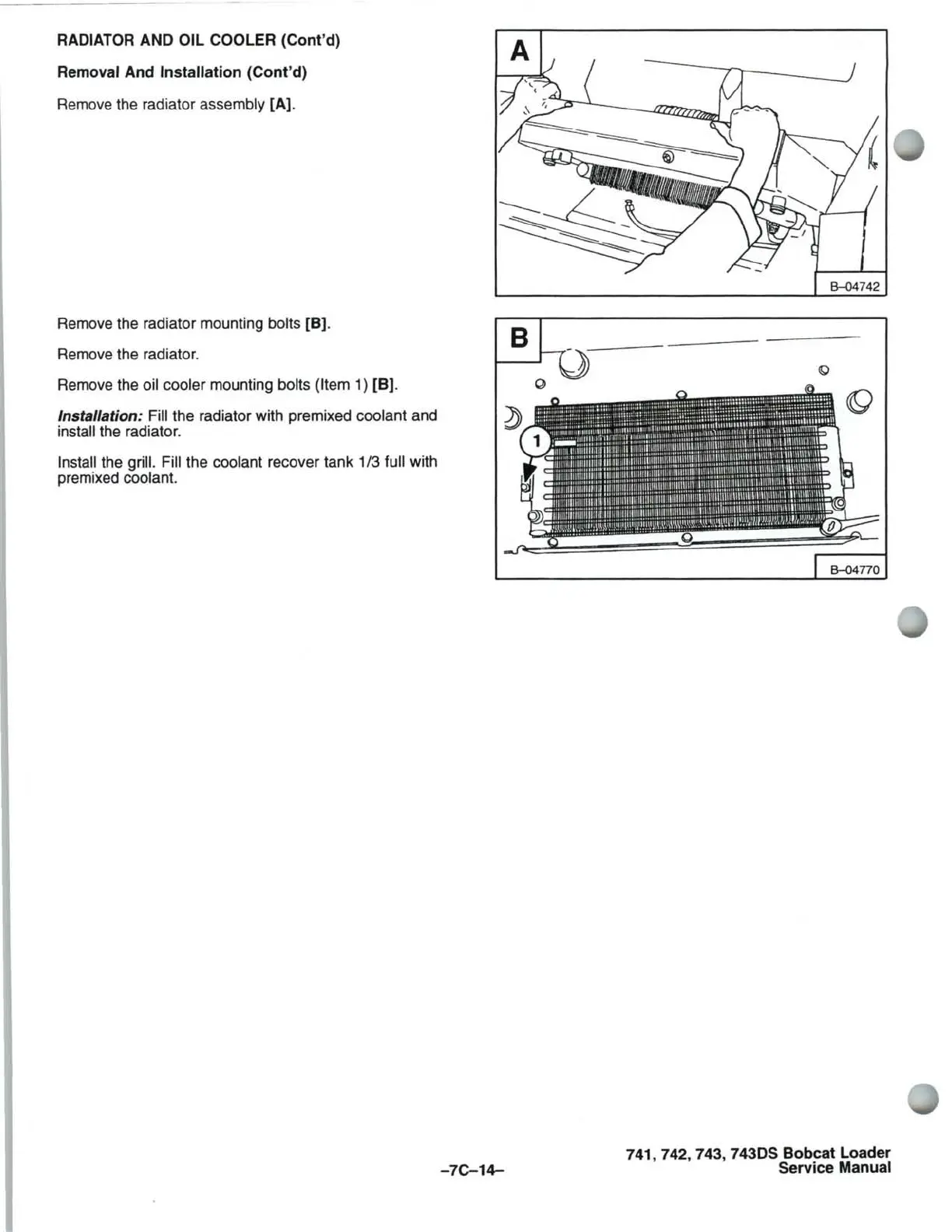

RADIATOR
AND OIL COOLER (Cont'd)
Removal And Installation (Cont'd)
Remove the radiator assembly [A].
Remove the radiator mounting bolts
[B]
.
Remove the radiator.
Remove the oil cooler mounting bolts
(Item 1) [B).
Installation: Fill the radiator with premixed coolant and
install the radiator.
Install the grill. Fill the coolant recover tank 1/3 full with
premixed coolant.
-7C-14-
B
8-04742
741, 742, 743, 743DS Bobcat Loader
Service Manual
