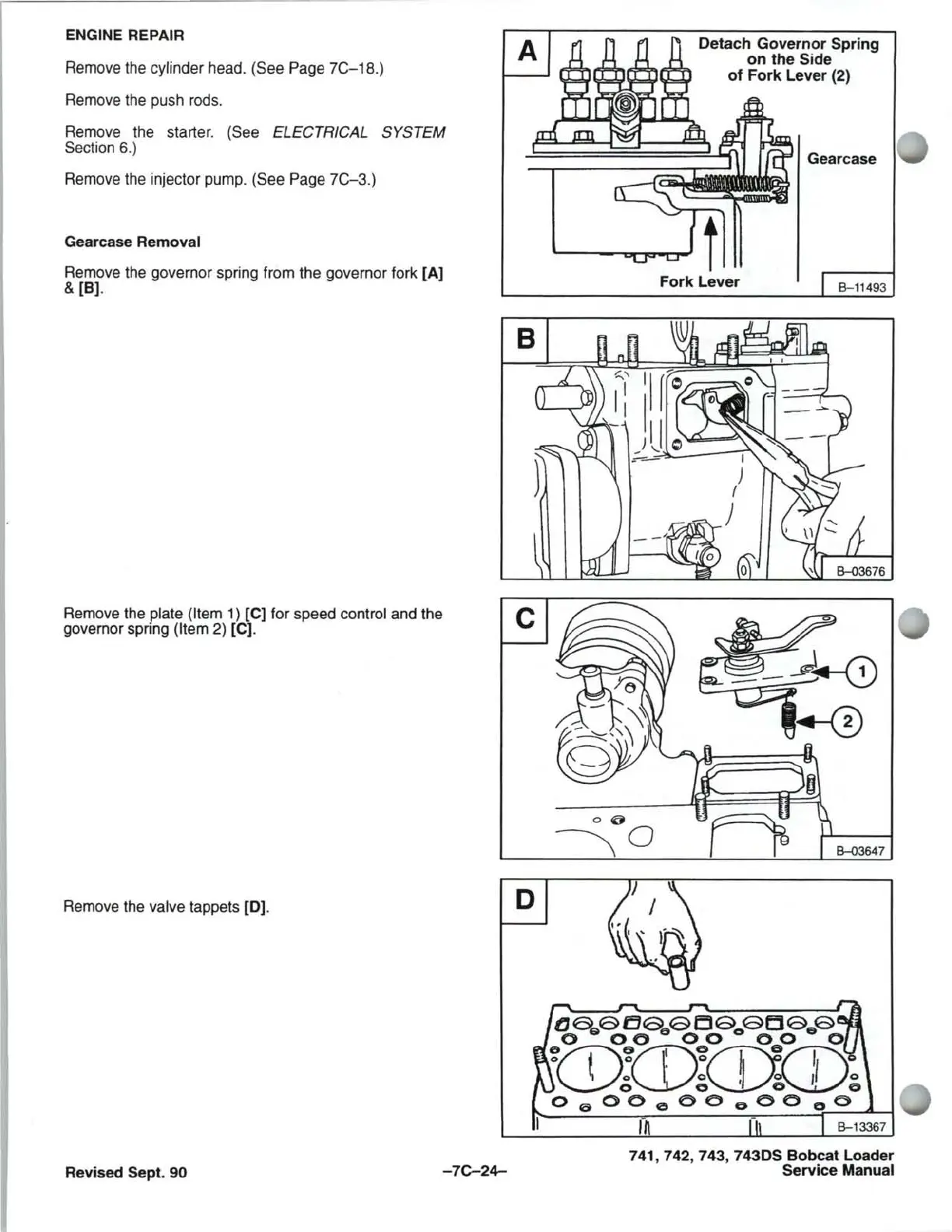

ENGINE REPAIR
Remove the cylinder head. (See Page 7C-1B.)
Remove the push rods.
Remove the starter.
(See ELECTRICAL SYSTEM
Section 6 .)
Remove the injector pump. (See Page 7C-3 .)
Gearcase Removal
Remove the governor spring from the governor fork [A]
& [B).
A
Remove the plate (Item 1) [C) for speed control and the C
governor spring (Item 2) [C).
Remove the valve tappets [0).
D
Revised Sept. 90
-7C-24-
Detach Governor Spring
on the Side
of Fork Lever (2)
Gearcase
Fork Lever
6-1 1493
6-03647
741 , 742,743, 7430S Bobcat Loader
Service Manual
