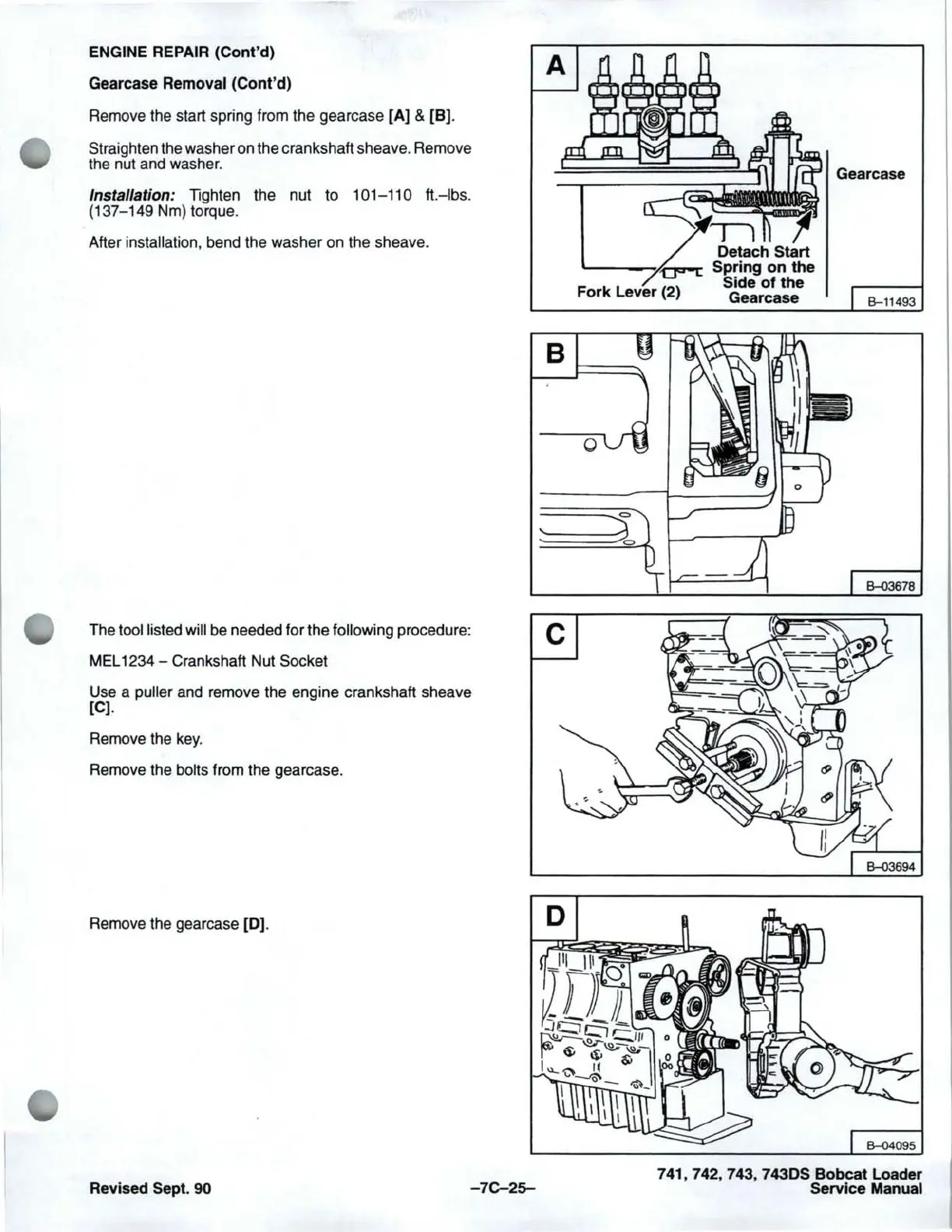

ENGINE REPAIR (Cont'd)
Gearcase Removal
(Cont'd)
Remove the start spring from the gearcase [A] & [B].
Straighten the washer on the crankshaft sheave. Remove
the nut and washer.
Installation: Tighten the nut to 101-110 ft
.-
Ibs.
(137-149 Nm) torque.
After
installation, bend the washer on the sheave.
The tool listed will be needed for the following procedure:
MEL
1234 - Crankshaft Nut Socket
Use a
puller and remove the engine crankshaft sheave
[C].
Remove the key.
Remove the bolts from the gearcase.
Remove the gearcase
[0].
Revised Sept.
90
-7C-25-
Z
6eta~hSt!
'----
~
Spring on the
Side of the
Fork Lever (2) Gearcase
Gearcase
B-11493
741, 742, 743,
7430S
Bobcat Loader
Service Manual
