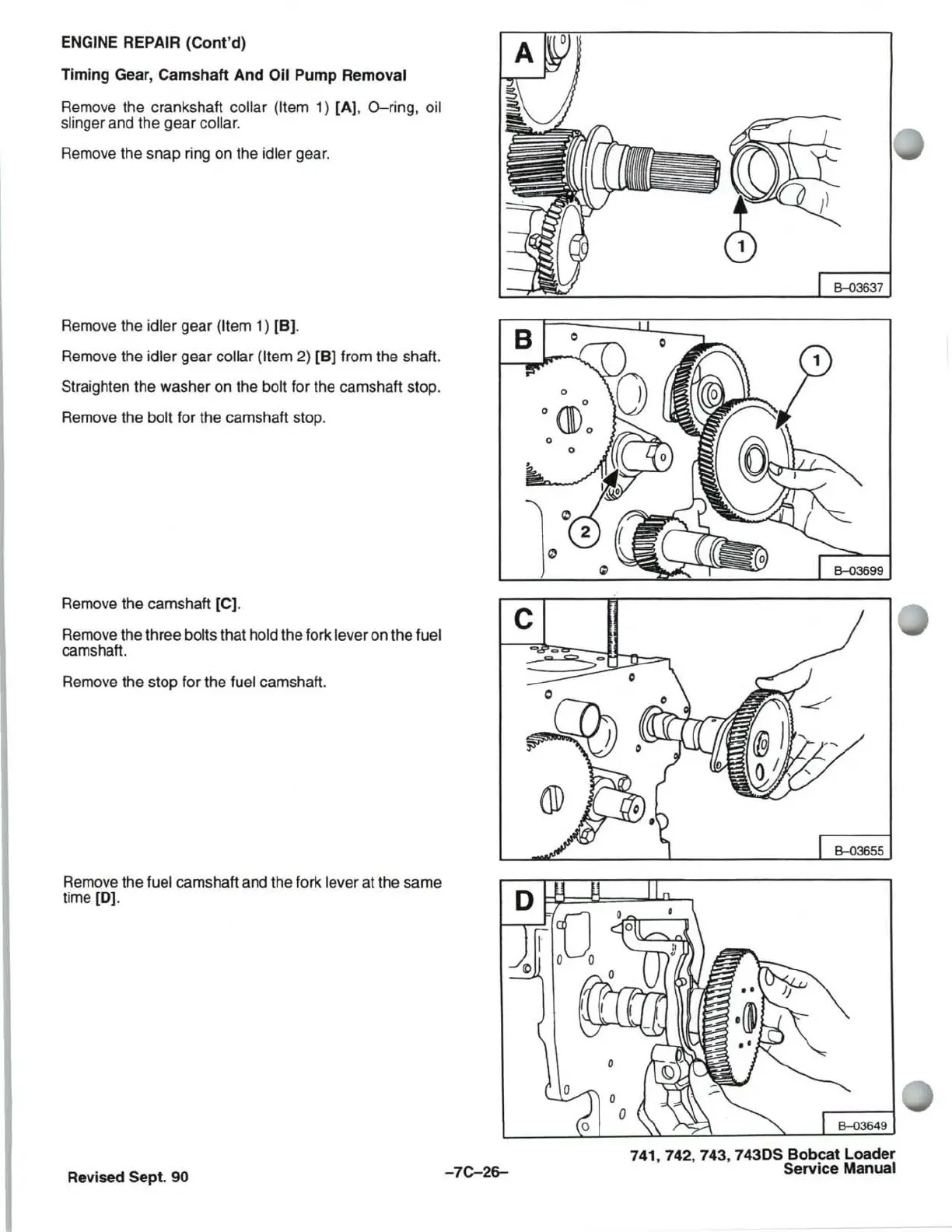

ENGINE REPAIR (Cont'd)
Timing Gear, Camshaft And
Oil Pump Removal
Remove the crankshaft collar (Item 1)
[A]
, O-ring, oil
slinger and the gear
collar.
Remove the snap ring on the idler gear.
Remove the idler gear
(Item 1) [B).
Remove the idler gear collar (Item 2) [B] from the shaft.
Straighten the washer on the bolt for the camshaft stop.
Remove the bolt for the camshaft stop.
Remove the camshaft [C].
Remove the three bolts that hold the fork lever on the fuel
camshaft.
Remove the stop for the fuel camshaft.
Remove the fuel camshaft and the fork lever at the same
time
[0).
Revised Sept. 90
-7C-26-
741,742,743,
7430S
Bobcat Loader
Service Manual
