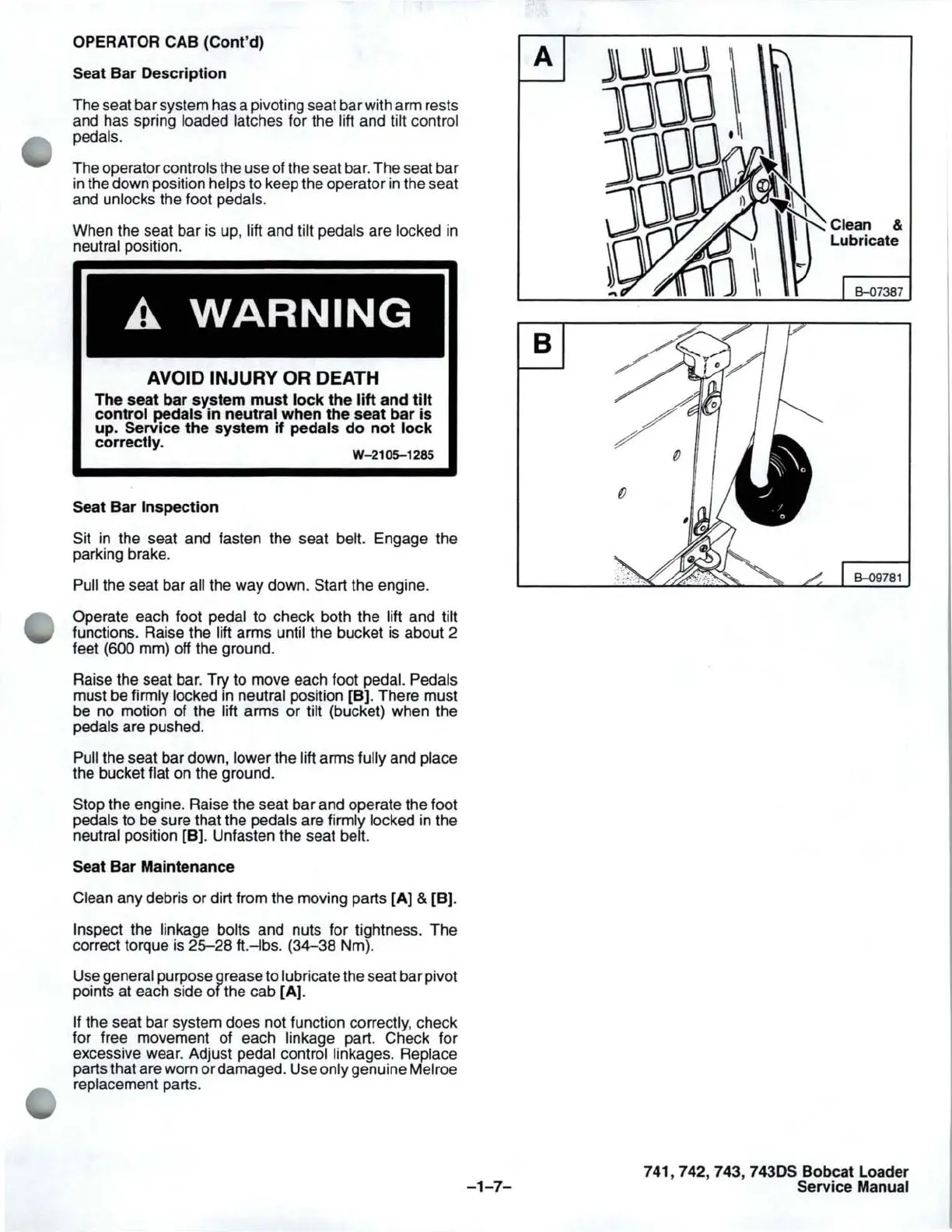

OPERATOR CAB (Cont'd)
Seat Bar Description
The seat bar system has a pivoting seat bar with arm rests
and has spring loaded latches for the
lift and tilt control
pedals.
The operator controls the use of the seat bar. The seat bar
in
the down position helps to keep the operator
in
the seat
and unlocks the foot pedals.
When the seat bar
is
up, lift and tilt pedals are locked
in
neutral position.
A
WARNING
AVOID INJURY OR DEATH
The seat bar system
must
lock
the
lift
and
tilt
control pedals in neutral when the seat bar
is
up. Service the system
if
pedals
do
not
lock
correctly.
W-2105-1285
Seat Bar Inspection
Sit
in
the seat and fasten the seat belt. Engage the
parking brake.
Pull the seat bar all the way down. Start the engine.
Operate each foot pedal to check both the lift and tilt
functions. Raise the
lift arms until the bucket
is
about 2
feet
(600 mm) off the ground.
Raise the seat bar. Try to move each foot
pedal. Pedals
must be firmly locked in neutral position [B). There must
be no motion of the lift arms or tilt (bucket) when the
pedals are pushed.
Pull the seat bar down, lower the lift arms fully and place
the bucket flat on the ground.
Stop the engine. Raise the seat bar and operate the foot
pedals to be sure that the pedals are firmly locked
in
the
neutral position
[B]
. Unfasten the seat belt.
Seat Bar Maintenance
Clean any debris or dirt from the moving parts
[A]
& [B).
Inspect the linkage bolts and nuts for tightness. The
correct torque
is
25-28
ft.-Ibs. (34-38 Nm).
Use general purpose grease to lubricate the seat bar pivot
pOints
at each side of the cab
[A]
.
If the seat bar system does not function correctly, check
for free movement of each
linkage part. Check for
excessive wear. Adjust pedal control linkages. Replace
parts that are worn or damaged. Use only genuine Melroe
replacement parts.
