ENGINE
ASSEMBLY (Cont'd)
Installing The Camshaft
And
Timing Gears (Cont'd)

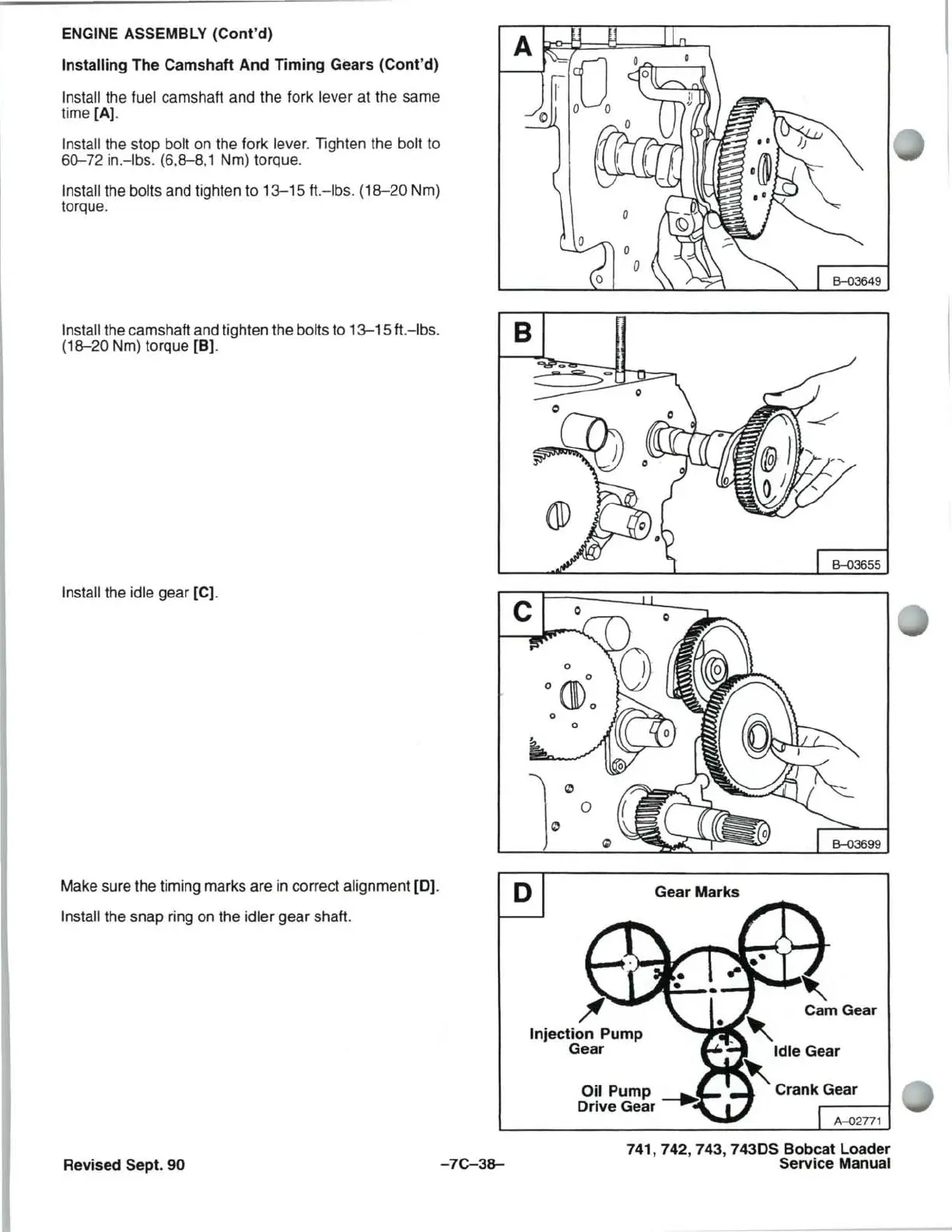

Install the fuel camshaft and the fork lever at the same
time [A].
Install the stop bolt
on
the fork lever. Tighten the bolt to
60-72
in
.-Ibs. (6,8-8,1 Nm) torque.
Install the bolts and tighten to
13-15
ft.
-Ibs
.
(18-20
Nm)
torque.
Install the camshaft and tighten the bolts to
13-15
ft.-Ibs. B
(18-20 Nm) torque [B].
Install the idle gear [C].
Make sure the timing marks are in correct alignment
[0].
Install the snap ring
on
the idler gear shaft.
