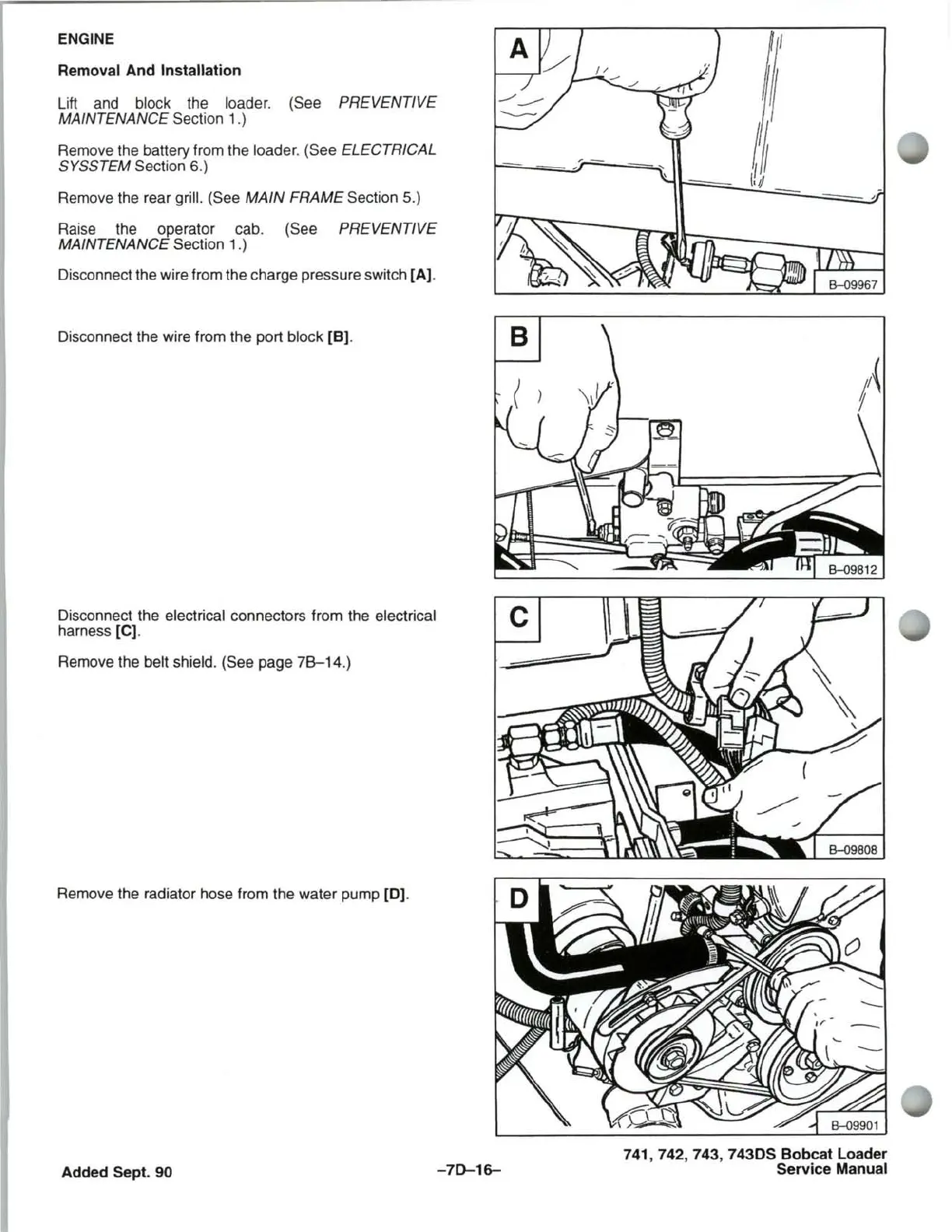

ENGINE
Removal And Installation
Lift and block the loader. (See PREVENTIVE
MAINTENANCE Section 1.)
Remove the battery from the loader. (See ELECTRICAL
SYSSTEM Section 6.)
Remove the rear
grill. (See MAIN FRAME Section 5.)
Raise the operator cab.
(See PREVENTIVE
MAINTENANCE
Section 1.)
Disconnect the wire from the charge pressure switch [A].
Disconnect the wire from the port
block [B].
Disconnect the electrical connectors from the electrical
harness [C].
Remove the
belt shield. (See page 7B-14.)
Remove the radiator hose from the water pump [0].
Added Sept.
90
-70-16-
741, 742, 743,
74305
Bobcat Loader
Service
Manual
