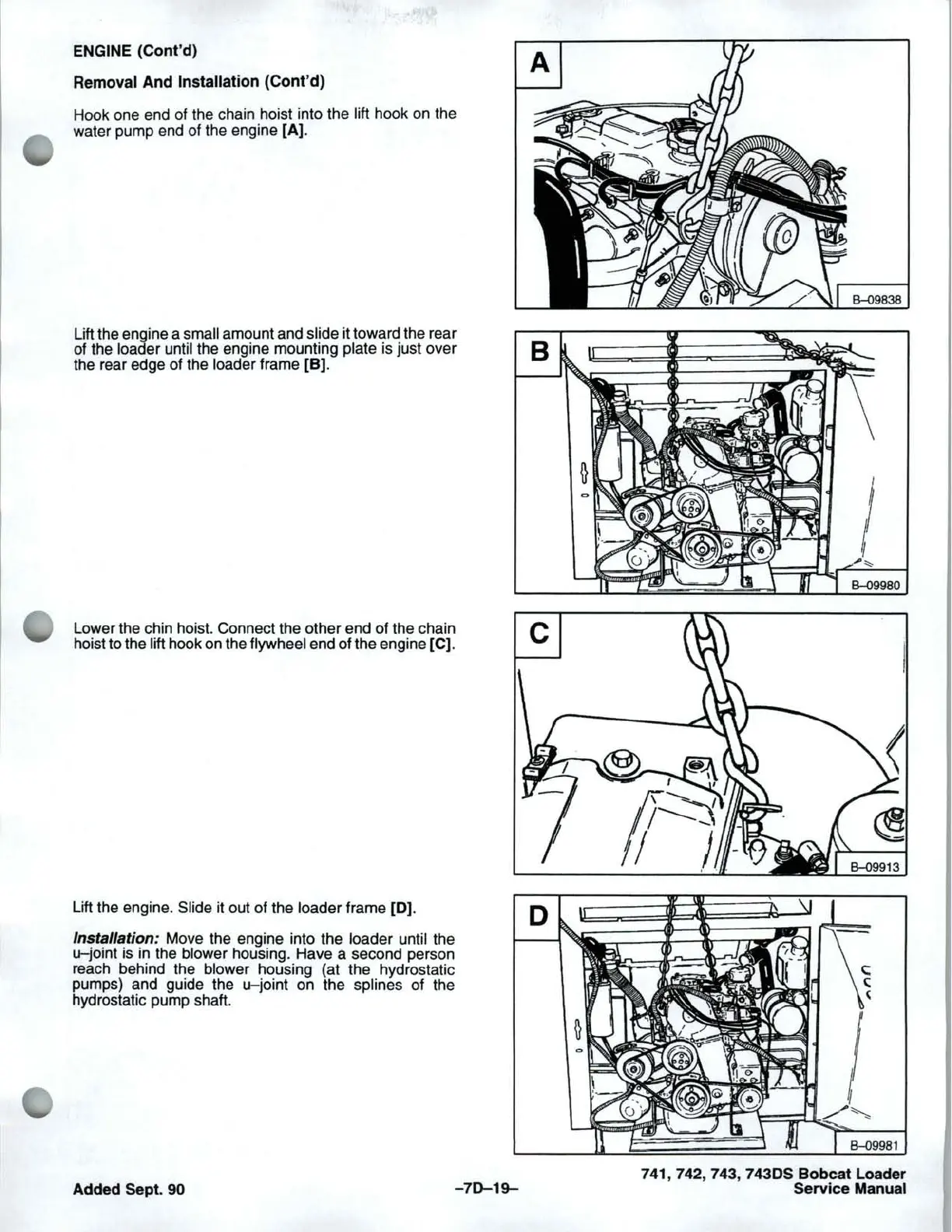

ENGINE (Cont'd)
Removal And Installation
(Cont'd)
Hook one end of the chain hoist into the lift hook on the
water pump end of the engine [A].
Lift the engine a small amount and
slide it toward the rear
of the
loader until the engine mounting plate is just over 8
the rear edge of the loader frame [B].
Lower the chin hoist. Connect the other end of the chain
hoist to the
lift hook on the flywheel end of the engine [C).
Lift the engine.
Slide it out of the loader frame
[0].
Installation: Move the engine into the loader until the
u-joint
is
in
the blower housing. Have a second person
reach behind the
blower housing (at the hydrostatic
pumps) and guide the u-joint on the
splines of the
hydrostatic pump shaft.
Added Sept.
90
-70-19-
D
B-09838
B-09980
741, 742, 743, 7430S
Bobcat
Loader
Service Manual
