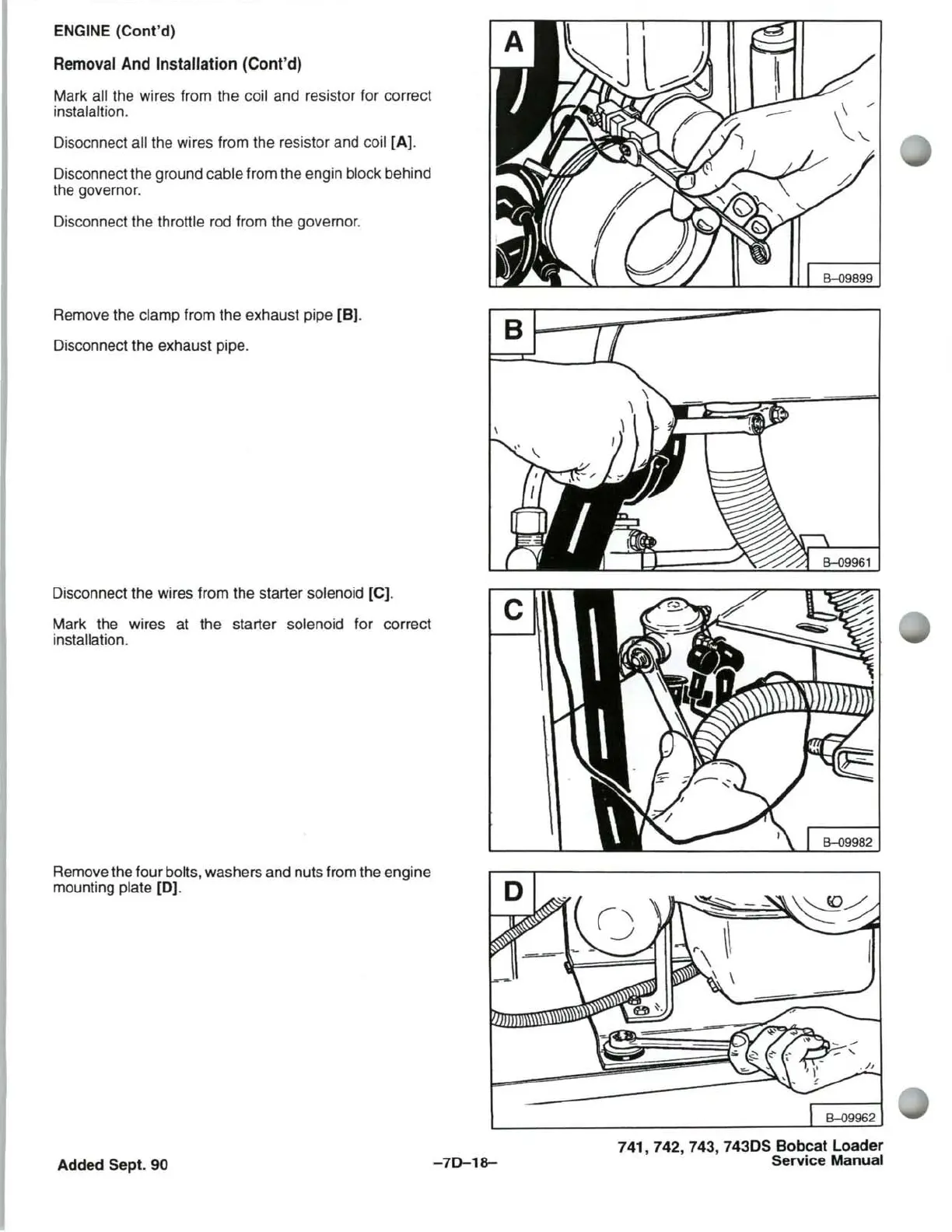

ENGINE (Cont'd)
Removal
And
Installation
(Cont'd)
Mark all the wires from the coil and resistor for correct
instalaltion.
Disocnnect all the wires from the resistor and coil [A].
Disconnect the ground cable from the engin block behind
the governor.
Disconnect the
throttle
rod
from the governor.
Remove the clamp from the exhaust pipe [B].
Disconnect the exhaust pipe.
Disconnect the wires from the starter
solenoid [C].
Mark the wires at the starter solenoid for correct
installation.
Remove the four bolts, washers and nuts from the engine
mounting
plate [0].
Added Sept.
90
-70-18-
741, 742, 743,
74305
Bobcat Loader
Service Manual
