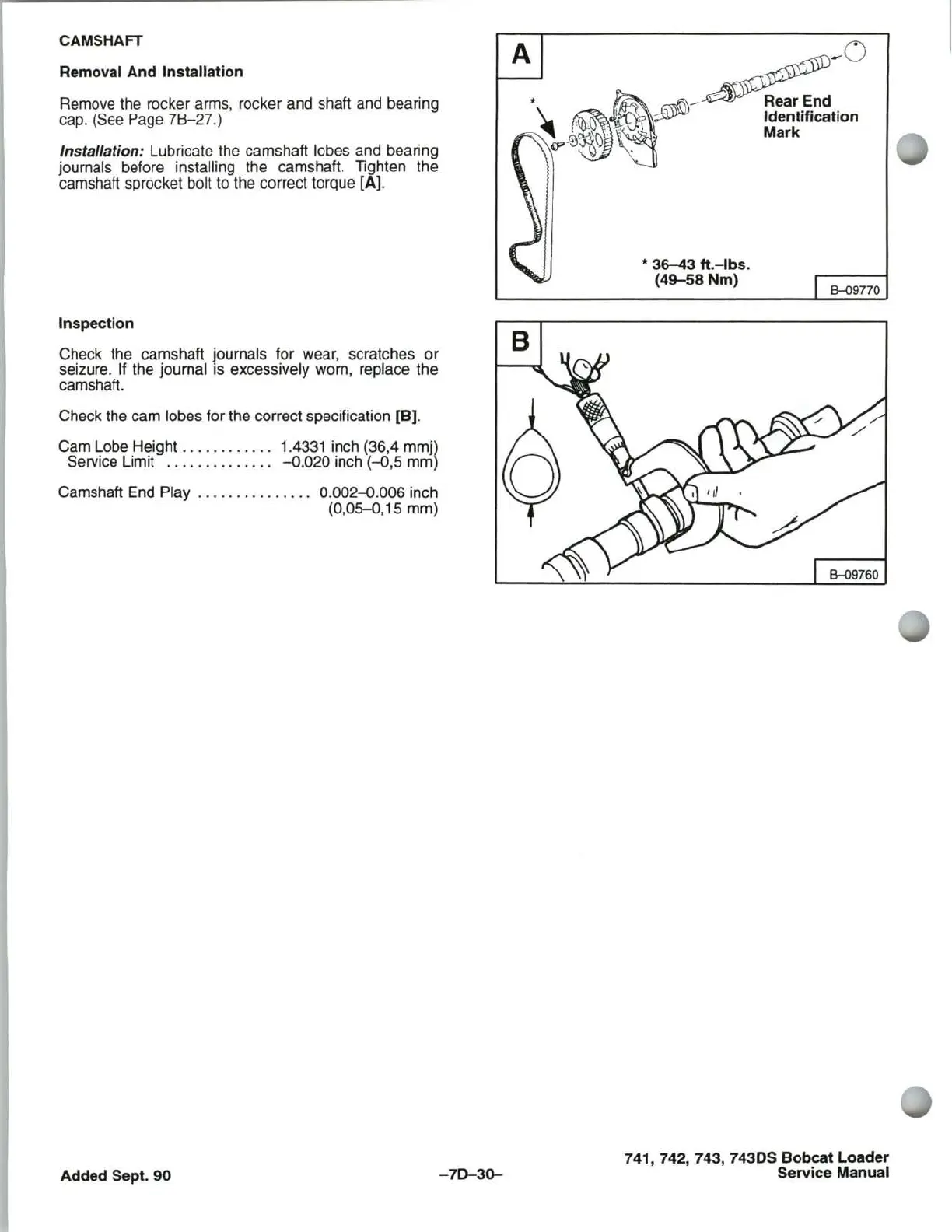

CAMSHAFT
Removal
And Installation
Remove the rocker arms, rocker and shaft and bearing
cap.
(See Page 7B-27.)
Installation: Lubricate the camshaft lobes and bearing
journals before
installing the camshaft. Tighten the
camshaft sprocket
bolt to the correct torque [A).
Inspection
Check the camshaft journals for wear, scratches or
seizure.
If the journal is excessively worn, replace the
camshaft.
Check the cam
lobes for the correct specification [B).
Cam Lobe Height. . . . . . . . . . .. 1.4331 inch (36,4 mmj)
Service Limit ... . .......... -0 .020 inch (-0,5 mm)
Camshaft End
Play ... . . .. ... . ... . 0.002-0.006 inch
(0,05-0,15 mm)
Added
Sept. 90
-70-30-
A -0
* ~ ' ~-~
, ~ ",~Jh\f . \ . Mark
\.. I ... ~ . ~ ~ Identification
{P ~~\J •
* 36--43 ft.-Ibs.
(49-58 Nm)
EH:l9770
741, 742, 743, 7430S Bobcat Loader
Service Manual
