A
Apply
Sealant
to
both
surfaces.
*
51-54
ft.-Ibs.
(69-73 Nm) Cold
# 11-14
ft.-Ibs.
(15-19 Nm)

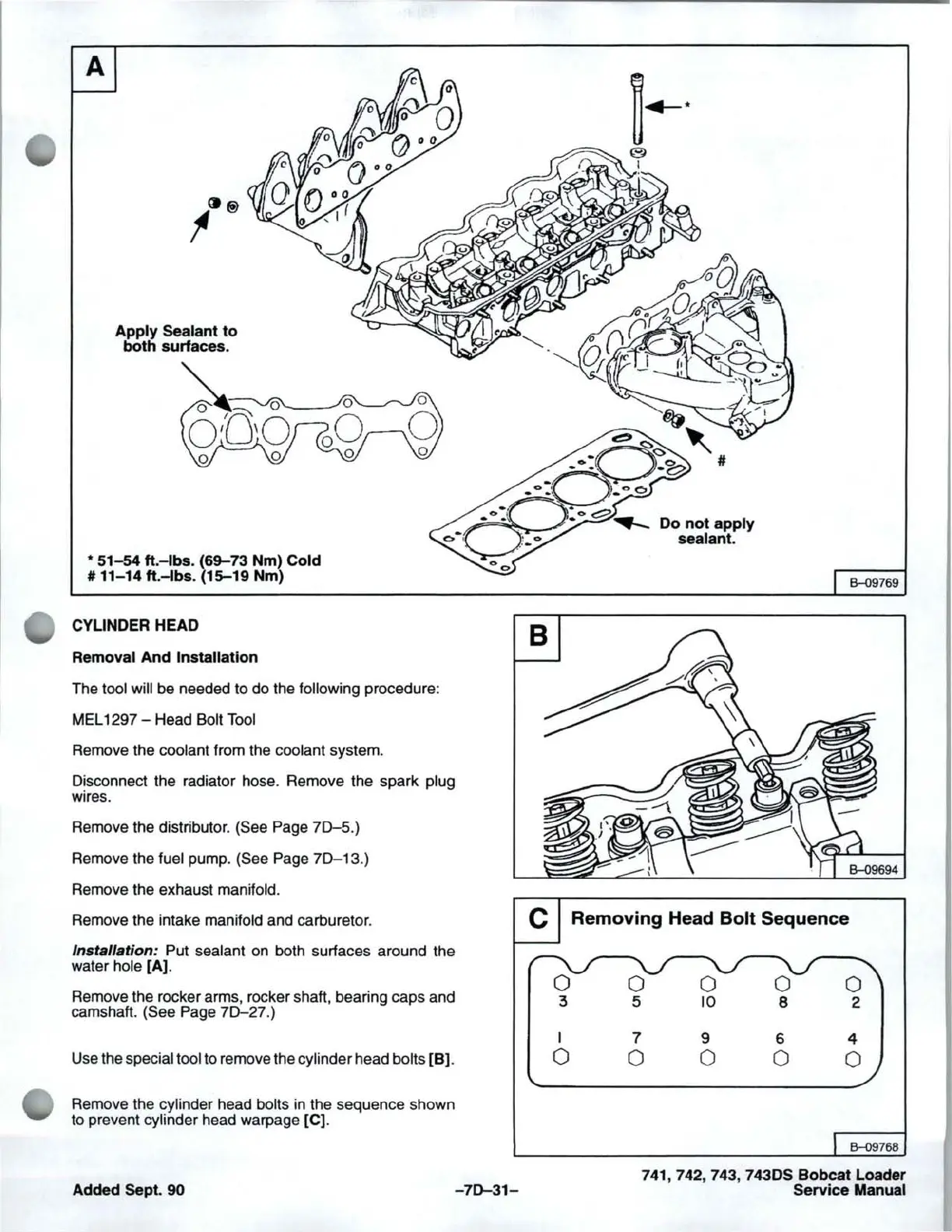

CYLINDER HEAD
Removal
And
Installation
The tool will be needed to do the following procedure:
MEL 1297 - Head Bolt Tool
Remove the coolant from the coolant system.
Disconnect the radiator hose. Remove the spark plug
wires.
Remove the distributor.
(See Page
70-5
.)
Remove the fuel pump.
(See Page
7D-13
.)
Remove the exhaust manifold.
Remove the intake manifold and carburetor.
Installation:
Put sealant on both surfaces around the
water hole [A).
Remove the rocker arms, rocker shaft, bearing caps and
camshaft.
(See Page 7D-27.)
Use the special tool to remove the cylinder head bolts [B).
Remove the cylinder head bolts
in
the sequence shown
to prevent cylinder head warpage [C).
Added Sept. 90
I
o
-70-31-
Do
not
apply
sealant.
6-09769
Removing
Head
Bolt
Sequence
o
5
7
o
o
10
9
o
o
8
6
o
o
2
4
o
B-{)9768
