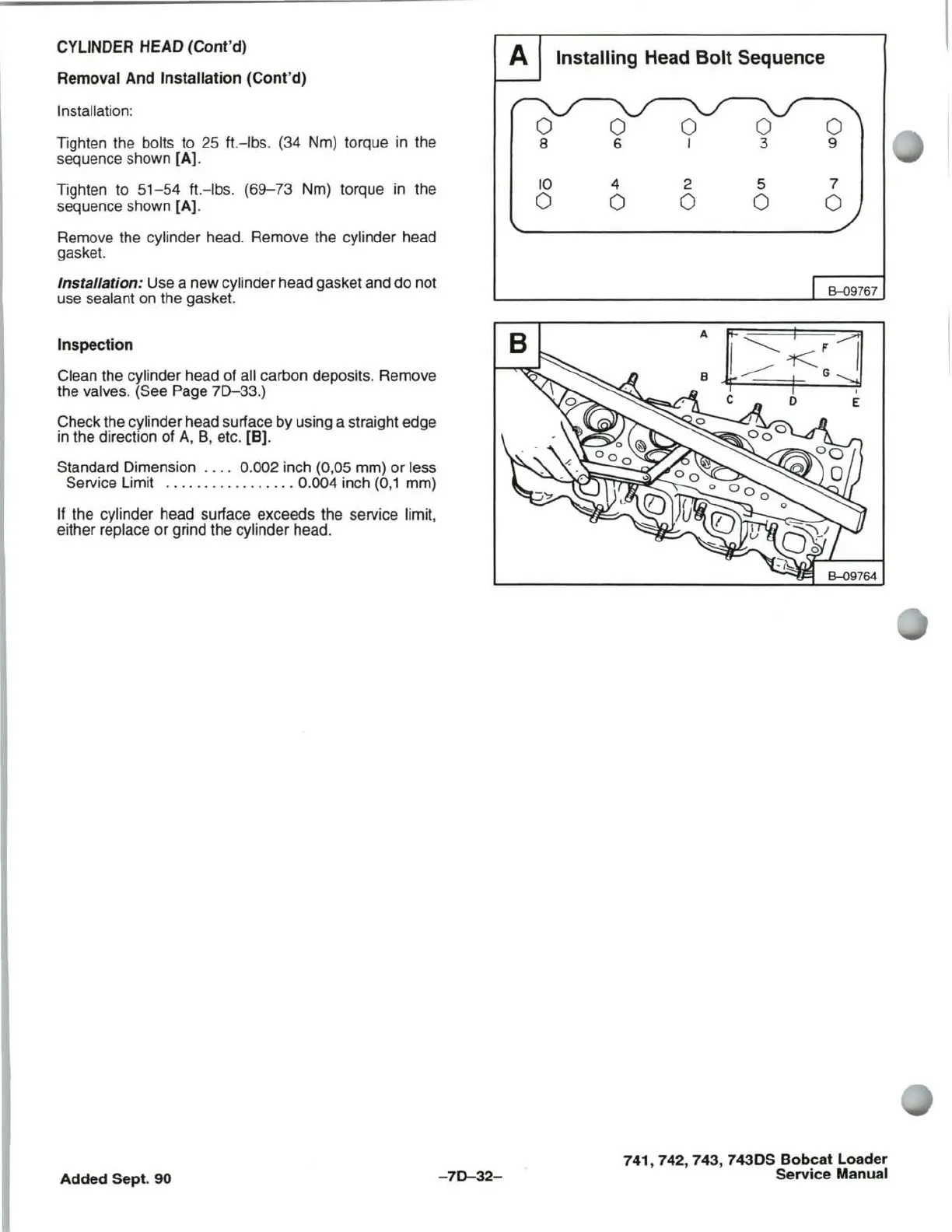

CYLINDER HEAD (Cont'd)
Removal
And Installation (Cont'd)
Installation:
Tighten the bolts to 25 ft.-Ibs. (34 Nm) torque in the
sequence shown [A].
Tighten to
51-54 ft.-Ibs. (69-73 Nm) torque in the
sequence shown [A].
Remove the
cylinder head. Remove the cylinder head
gasket.
Installation: Use a new cylinder head gasket and do not
use
sealant on the gasket.
Inspection
Clean
the cylinder head of all carbon deposits. Remove
the
valves. (See Page 70-33.)
Check the cylinder head surface by using a straight edge
in the direction of A,
S, etc. [B].
Standard Dimension .
... 0.002 inch (0, 05 mm) or less
Service Limit .. . .. .... . . . . .... 0.004 inch (0,1 mm)
If the cylinder head surface exceeds the service limit,
either replace or grind the cylinder head.
Added
Sept. 90
-70-32-
A Installing Head Bolt Sequence
10
o
4 2
5
7
o
o
o
o
6-09767
A !~~FJ
--- I G I
C 0 E
741,742,743, 7430S Bobcat Loader
