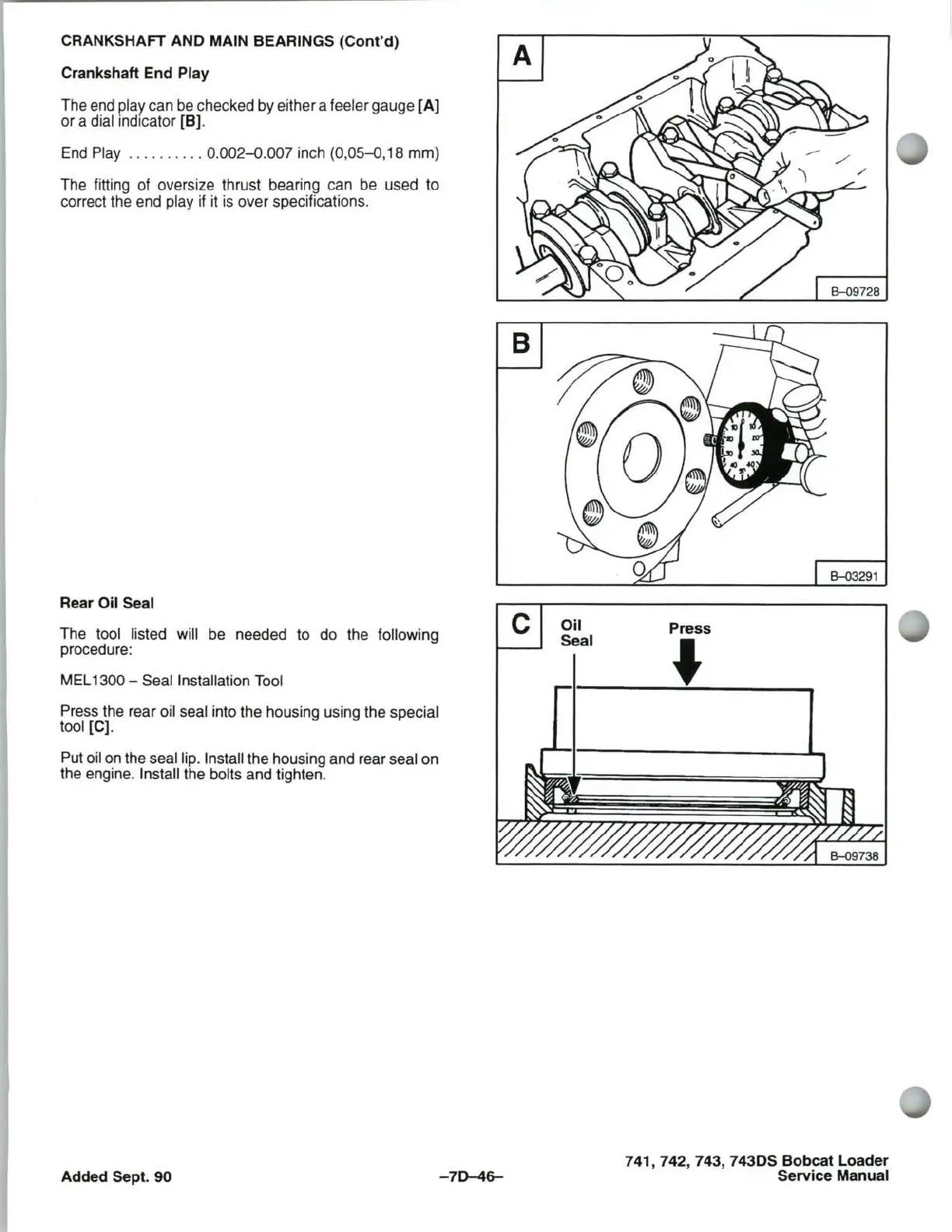

CRANKSHAFT AND MAIN BEARINGS (Cont'd)
Crankshaft End
Play
The
end
play can be checked by either a feeler gauge [A]
or a dial indicator [B].
End
Play
...
.
......
0.
002-0
.007 inch (0,05-0,18 mm)
The fitting of oversize thrust bearing can be used to
correct the end play if it is over specifications.
Rear Oil Seal
The tool listed will be needed to do the following
procedure:
MEL 1300 - Seal Installation
Tool
Press the rear oil seal into the housing using the special
tool
[C].
Put oil
on
the seal lip. Install the housing and rear seal on
the engine.
Install the bolts and tighten.
Added Sept.
90
-70-46--
B
c
Oil
Seal
EHl3291
Press
•
741,742,
743,
7430S
Bobcat Loader
Service Manual
