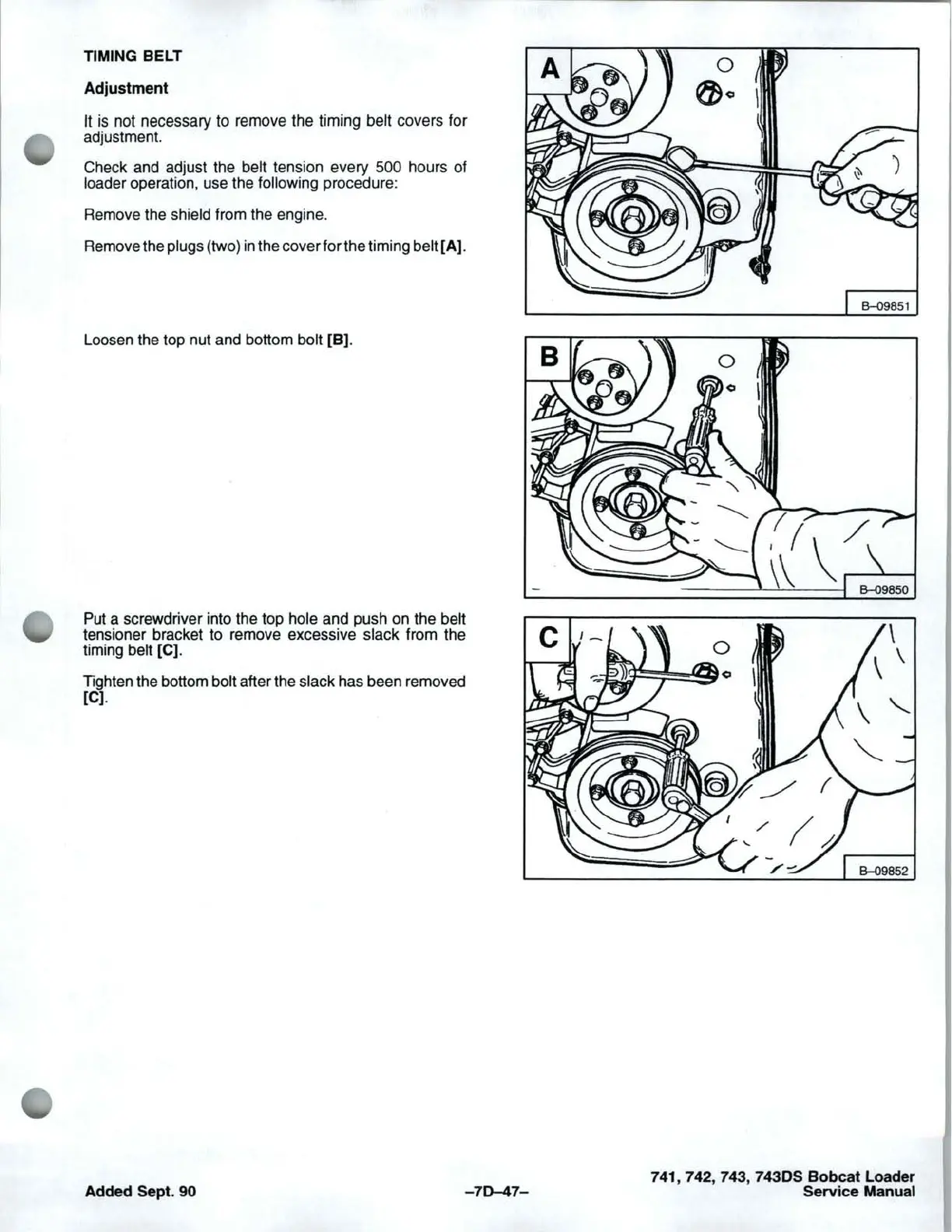

TIMING BELT
Adjustment
It
is
not necessary to remove the timing belt covers for
ad
justment.
Check and adjust the belt tension every 500 hours of
loader operation, use the
following procedure:
Remove the shield from the engine.
Remove the plugs (two)
in
the cover
forthe
timing belt [A].
Loosen the top nut and bottom bolt [B].
Put a screwdriver into the top hole and push on the belt
tensioner bracket to remove excessive slack from the
timing belt [C].
Tighten the bottom bolt after the slack has been removed
[C].
Added
Sept. 90
-70-47-
B-09851
741
, 742, 743,
7430S
Bobcat Loader
Service Manual
