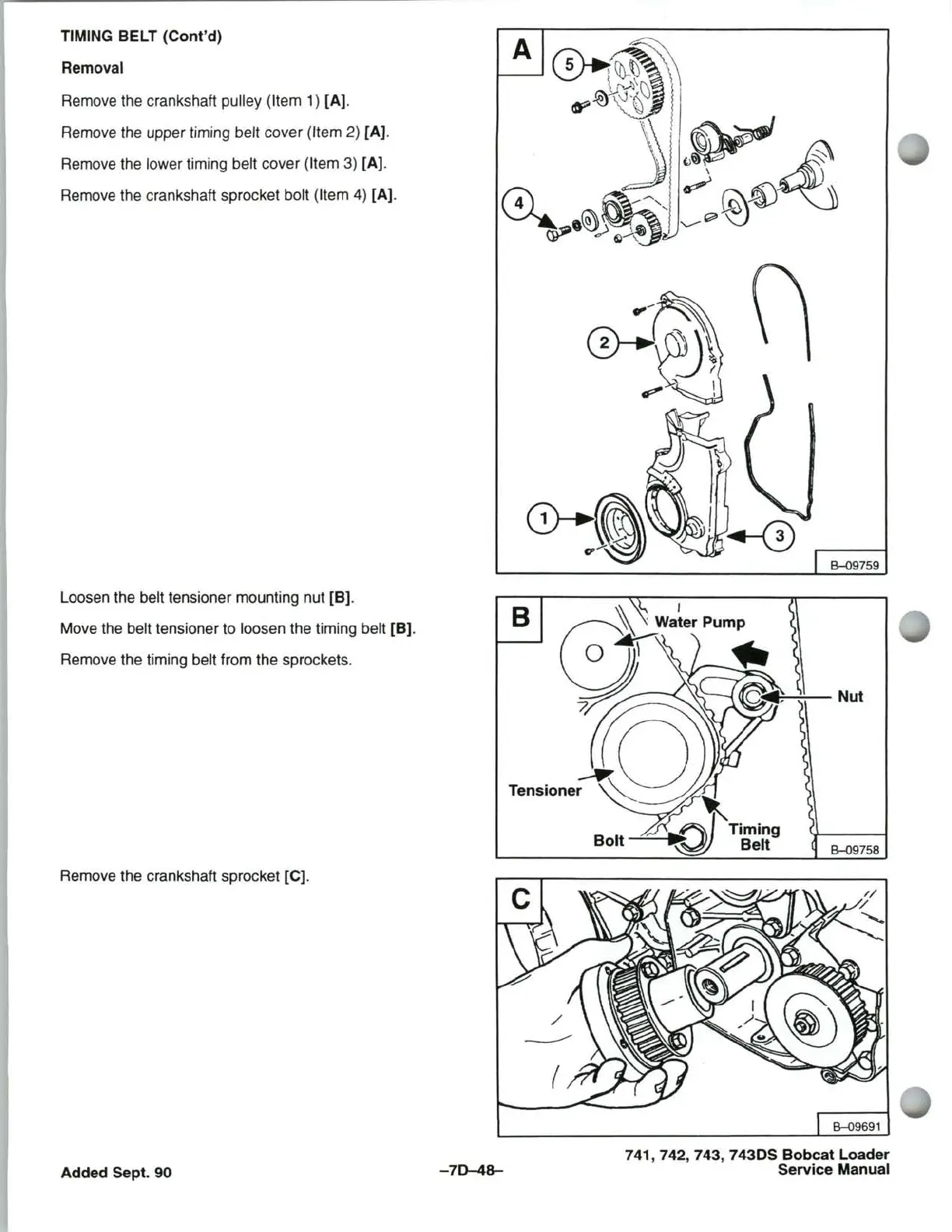

TIMING BELT (Cont'd)
Removal
Remove the crankshaft pulley (Item 1) [A].
Remove the upper timing
belt cover (Item 2) [A].
Remove the
lower timing belt cover (Item 3) [A].
Remove the crankshaft sprocket
bolt (Item 4) [A].
Loosen the
belt tensioner mounting nut [B].
Move the
belt tensioner to loosen the timing belt [B).
Remove the timing
belt from the sprockets.
Remove the crankshaft sprocket [C].
