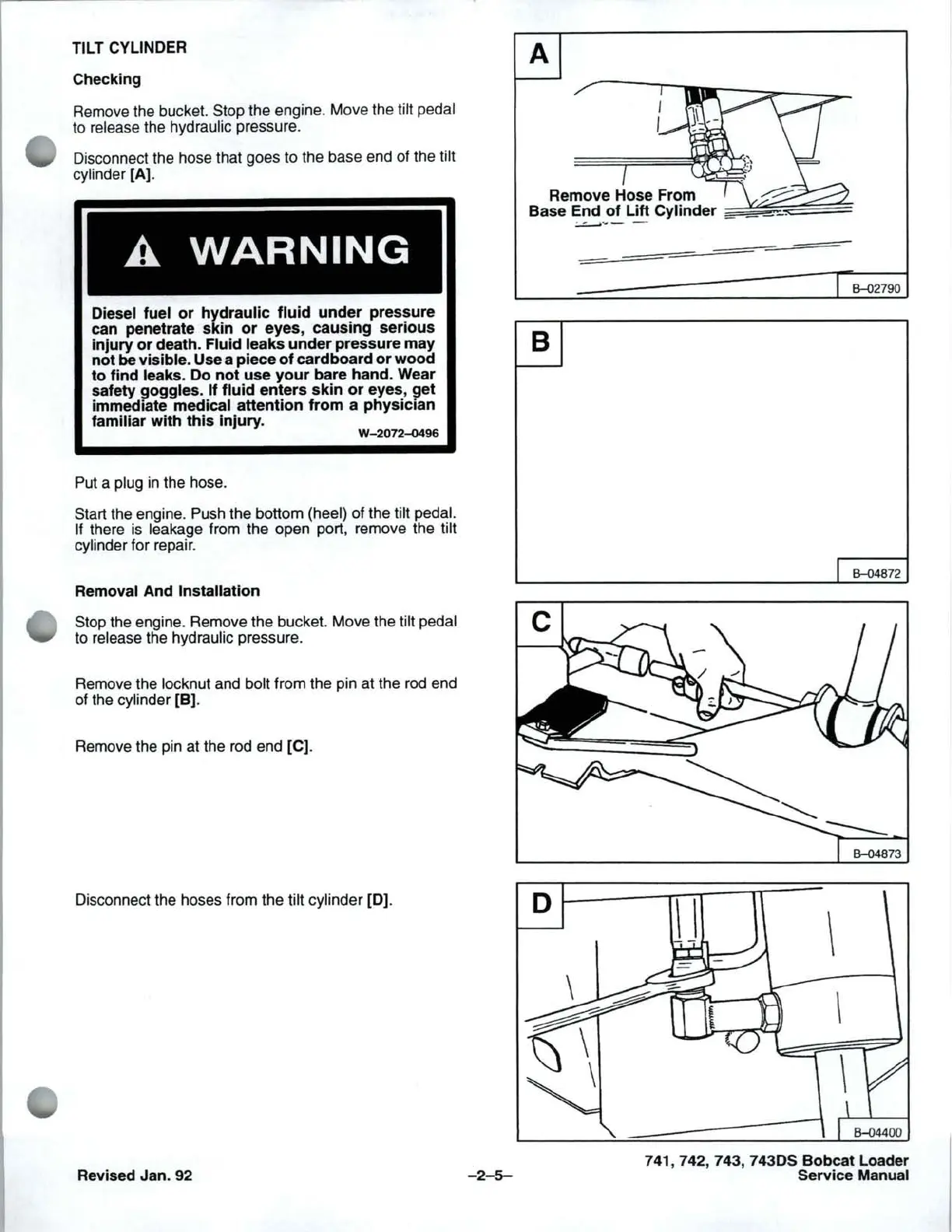

TILT CYLINDER
Checking
Remove the bucket. Stop the engine. Move the tilt pedal
to release the hydraulic pressure.
Disconnect the hose that goes to the base end of the tilt
cylinder [A).
I
A
WARNING
Diesel fuel
or
hydraulic
fluid
under
pressure
can penetrate
skin
or
eyes,
causing
serious
injury
or
death. Fluid leaks
under
pressure may
not
be visible. Use a piece
of
cardboard
or
wood
to
find
leaks. Do
not
use
your
bare hand. Wear
safety goggles.
If
fluid
enters
skin
or
eyes,
get
immediate medical
attention
from
a
physician
familiar
with
this
injury.
W-2072-0496
Put a plug
in
the hose.
Start the engine.
Push the bottom (heel) of the tilt pedal.
If there is leakage from the open port, remove the tilt
cylinder for repair.
Removal And Installation
Stop the engine. Remove the bucket. Move the tilt pedal
to release the hydraulic pressure.
Remove the locknut and bolt from the pin at the rod end
of the cylinder [B).
Remove the pin at the rod end [C).
Disconnect the hoses from the tilt cylinder
(0).
Revised Jan. 92
-2-5-
A
Remove Hose From
Base End
of
Lift
Cylinder
~_
~~5=~~=
8
~
.~
-
-
B--02790
I
B--04872
B--04873
741, 742, 743, 743DS Bobcat Loader
Service Manual
