TILT CYLINDER (Cont'd)
Removal And
Installation (Cont'd)

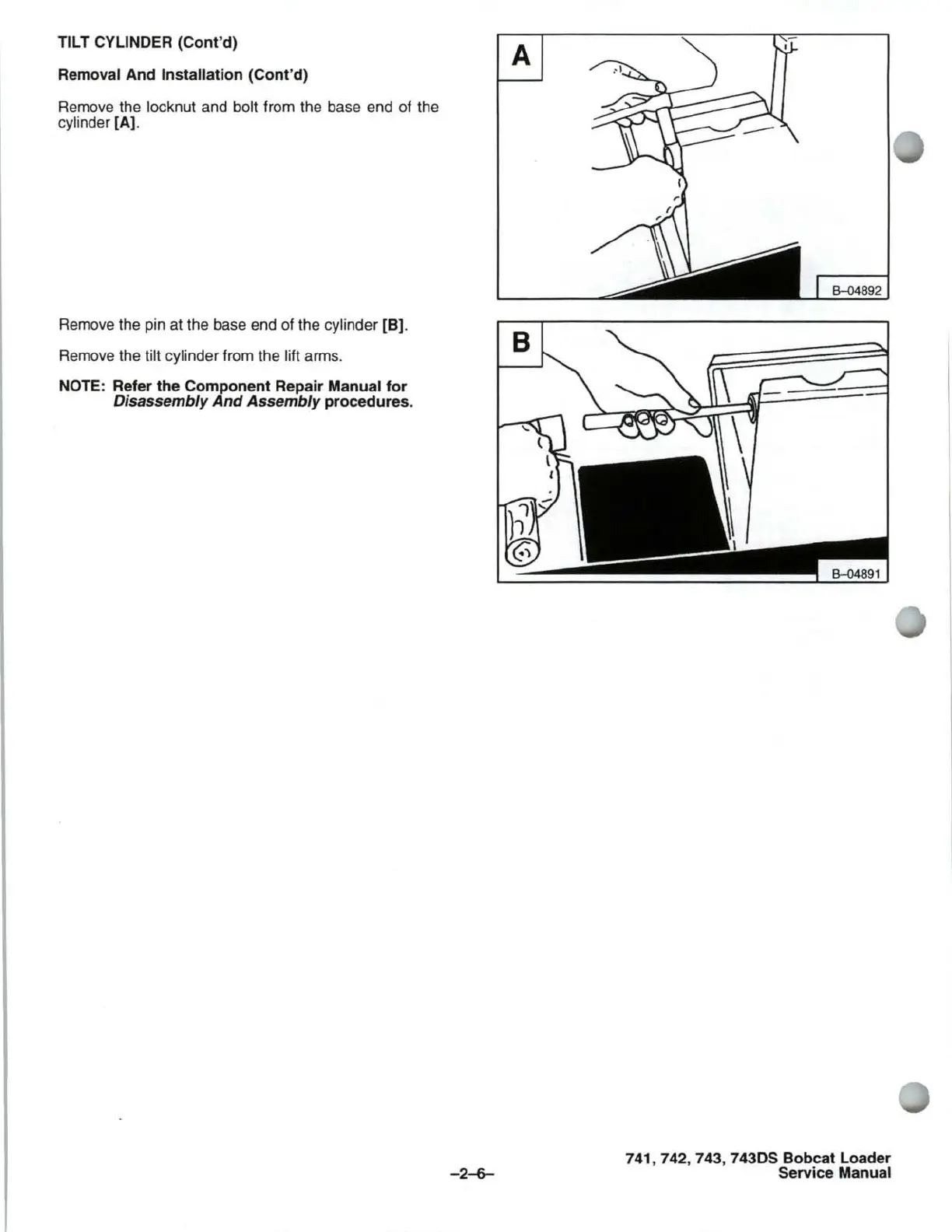

Remove the locknut and bolt from the base end of the
cylinder
[A].
Remove the pin at the base end of the cylinder [B].
Remove the tilt cylinder from the lift arms.
NOTE: Refer the Component Repair Manual for
Disassembly And Assembly procedures.
