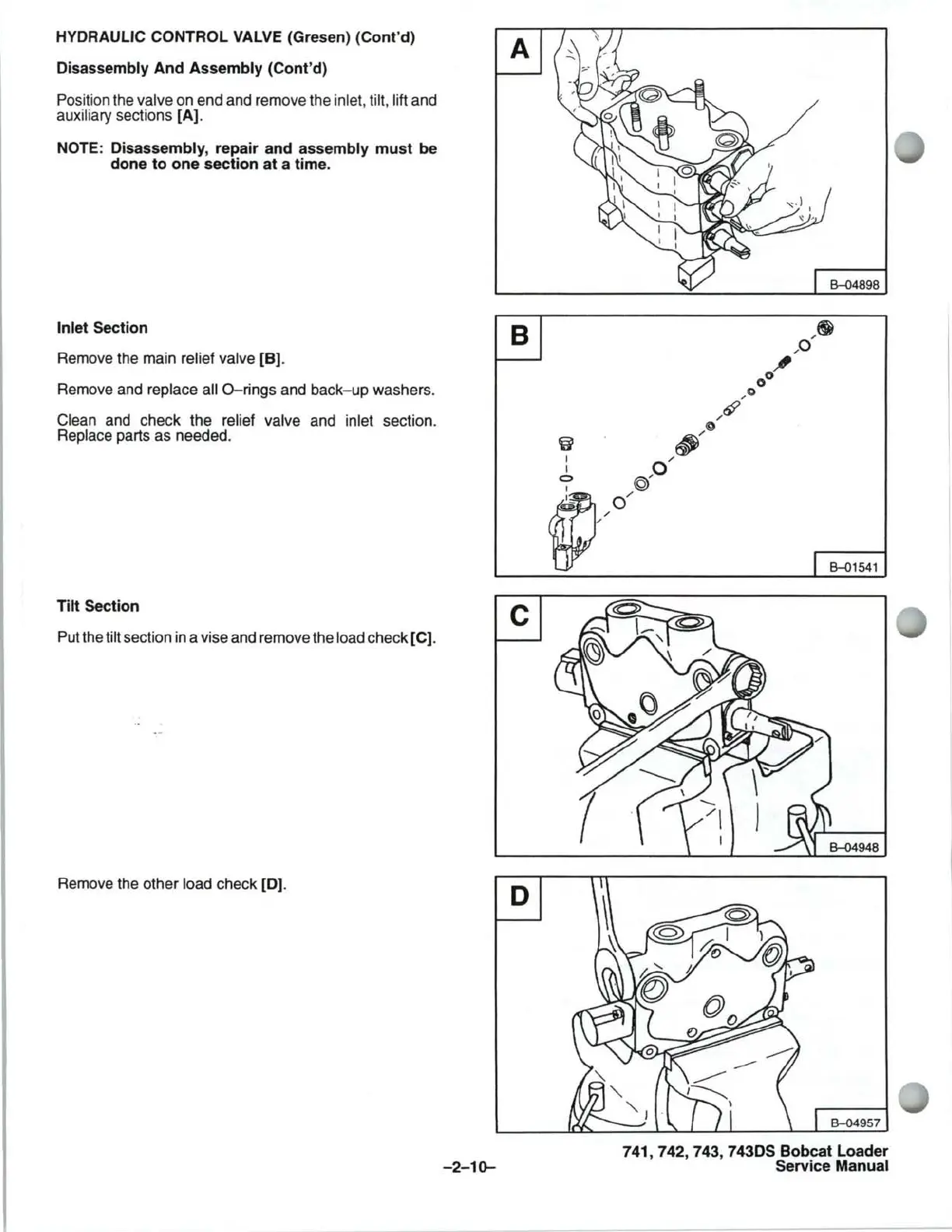

Bobcat 741 - Page 41

HYDRAULIC CONTROL VALVE (Gresen) (Cont'd)
Disassembly And Assembly (Cont'd)
Position the valve on end and remove the inlet, tilt, lift and
auxiliary sections [A).
NOTE: Disassembly, repair and assembly must be
done to one section at a time.
Inlet Section
Remove the main relief valve [B).
Remove and replace
all O-rings and back-up washers.
Clean and check the relief valve and inlet section.
Replace parts as needed.
Tilt Section
Put the tilt section in a vise and remove the load check [C).
Remove the other load check [0] .
