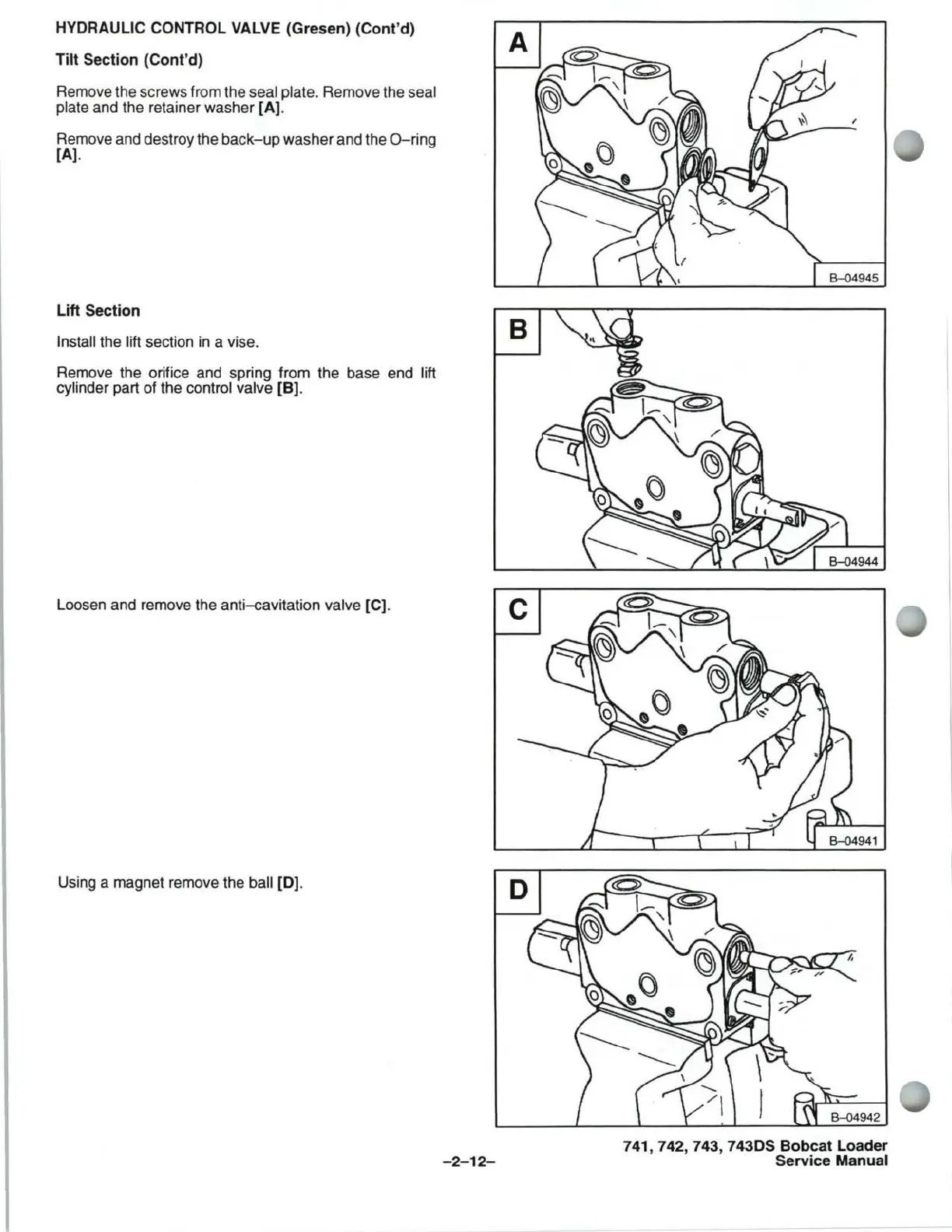

HYDRAULIC CONTROL VALVE (Gresen) (Cont'd)
Tilt Section (Cont'd)
Remove the screws from the seal plate. Remove the seal
plate and the retainer washer
[A).
Remove and destroy the back-up washer and the
O-ring
[A).
Lift Section
Install the lift section
in
a vise.
Remove the orifice and spring from the base end lift
cylinder part of the control valve
[B]
.
Loosen and remove the anti-cavitation valve [C).
Using a magnet remove the ball
(0).
A
-2-12-
741,742,743,
7430S
Bobcat Loader
Service Manual
