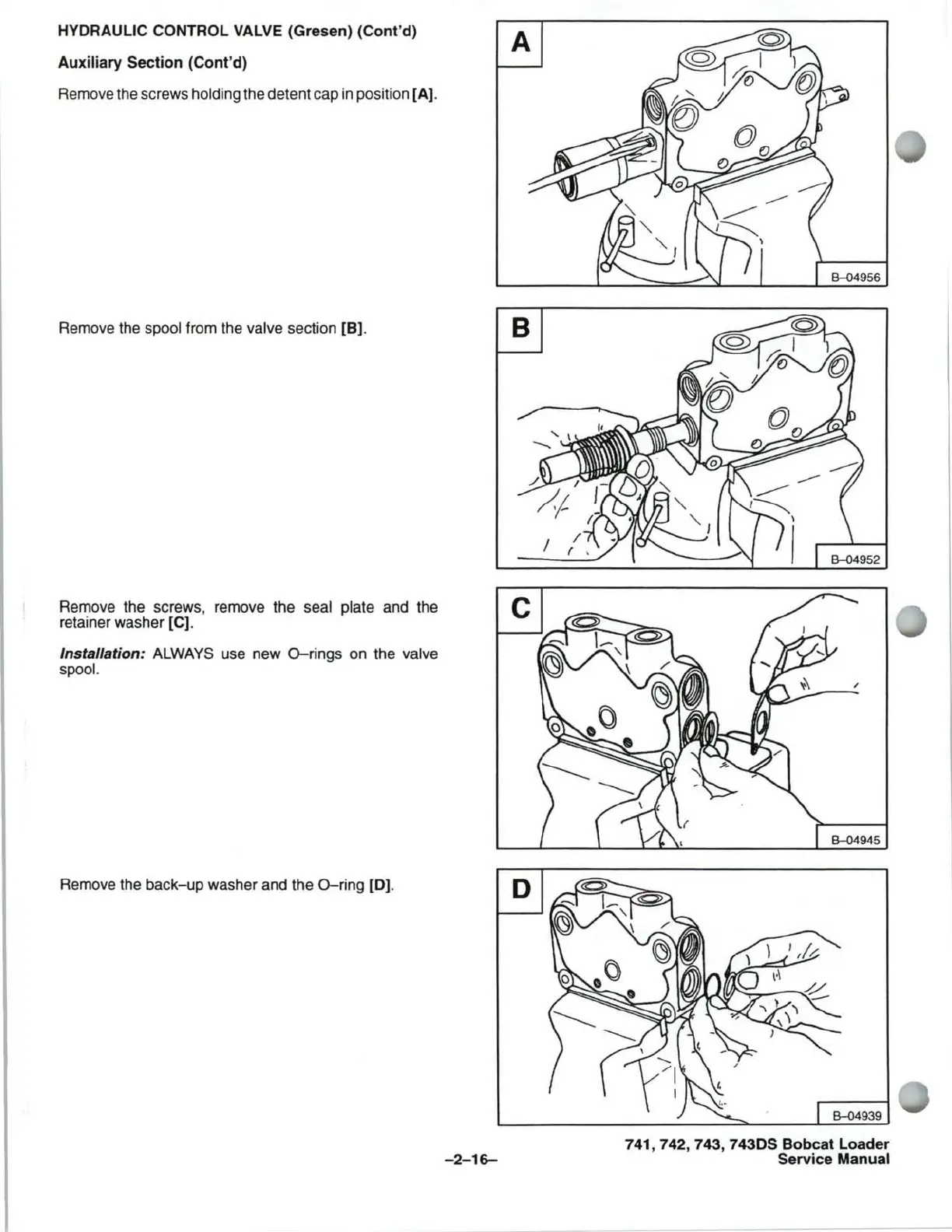

HYDRAULIC CONTROL VALVE (Gresen) (Cont'd)
Auxiliary Section (Cont'd)
Remove the screws holding the detent cap in position [A].
Remove the
spool from the valve section [B].
Remove the screws, remove the
seal plate and the
retainer washer [C].
Installation: ALWAYS use new O-rings on the valve
spool.
Remove the back-up washer and the O-ring [0] . D
741, 742, 743, 743DS Bobcat Loader
-2-16- Service Manual
