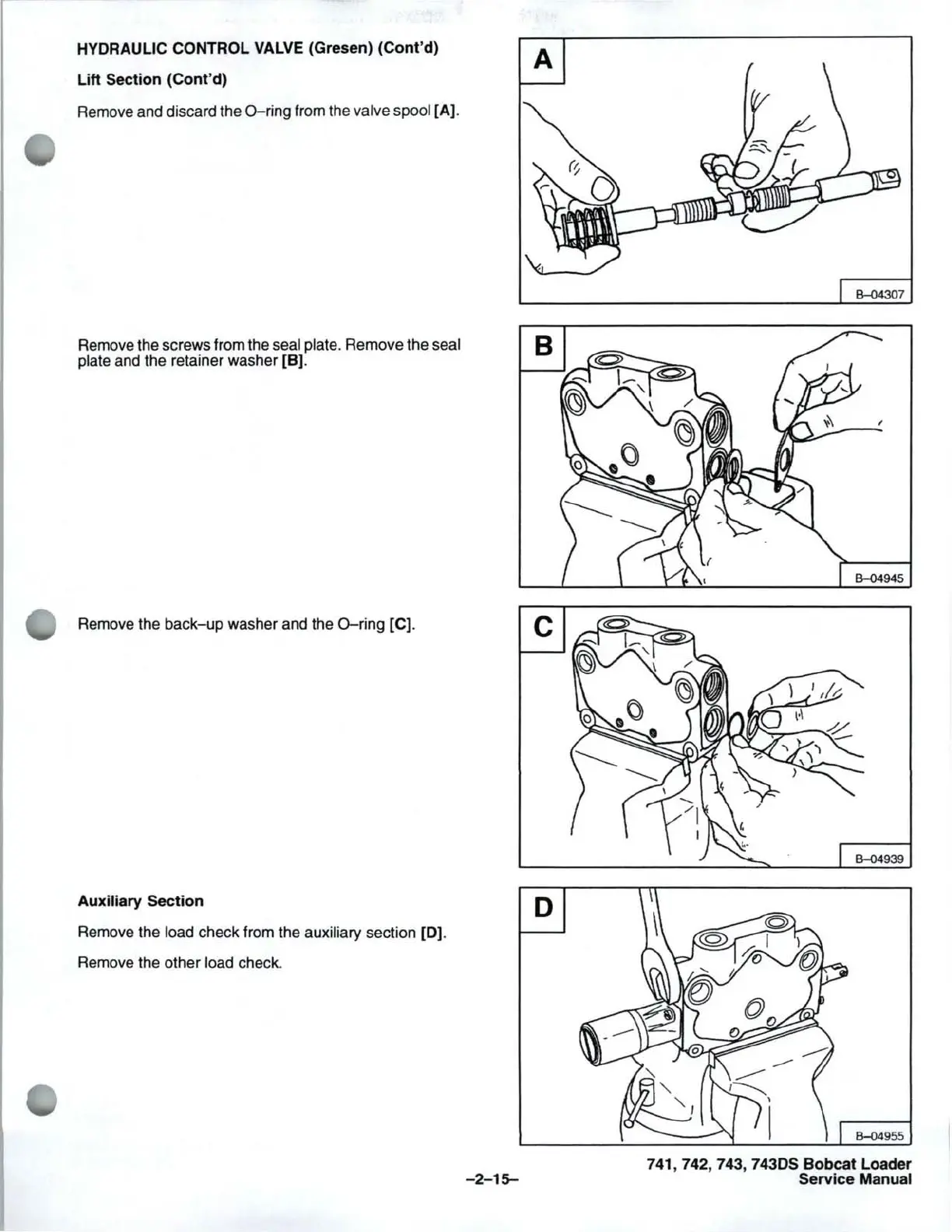

HYDRAULIC CONTROL VALVE (Gresen) (Cont'd)
Lift Section (Cont'd)
Remove and discard the O-ring from the valve spool [A].
Remove the screws from the seal plate. Remove the seal B
plate and the retainer washer [B].
Remove the back-up washer and the O-ring [C]. C
Auxiliary Section 0
Remove the load check from the auxiliary section [0].
Remove the other load check.
-2-15-
8-04307
8-049 55
741, 742, 743, 7430S Bobcat Loader
Service
Manual
