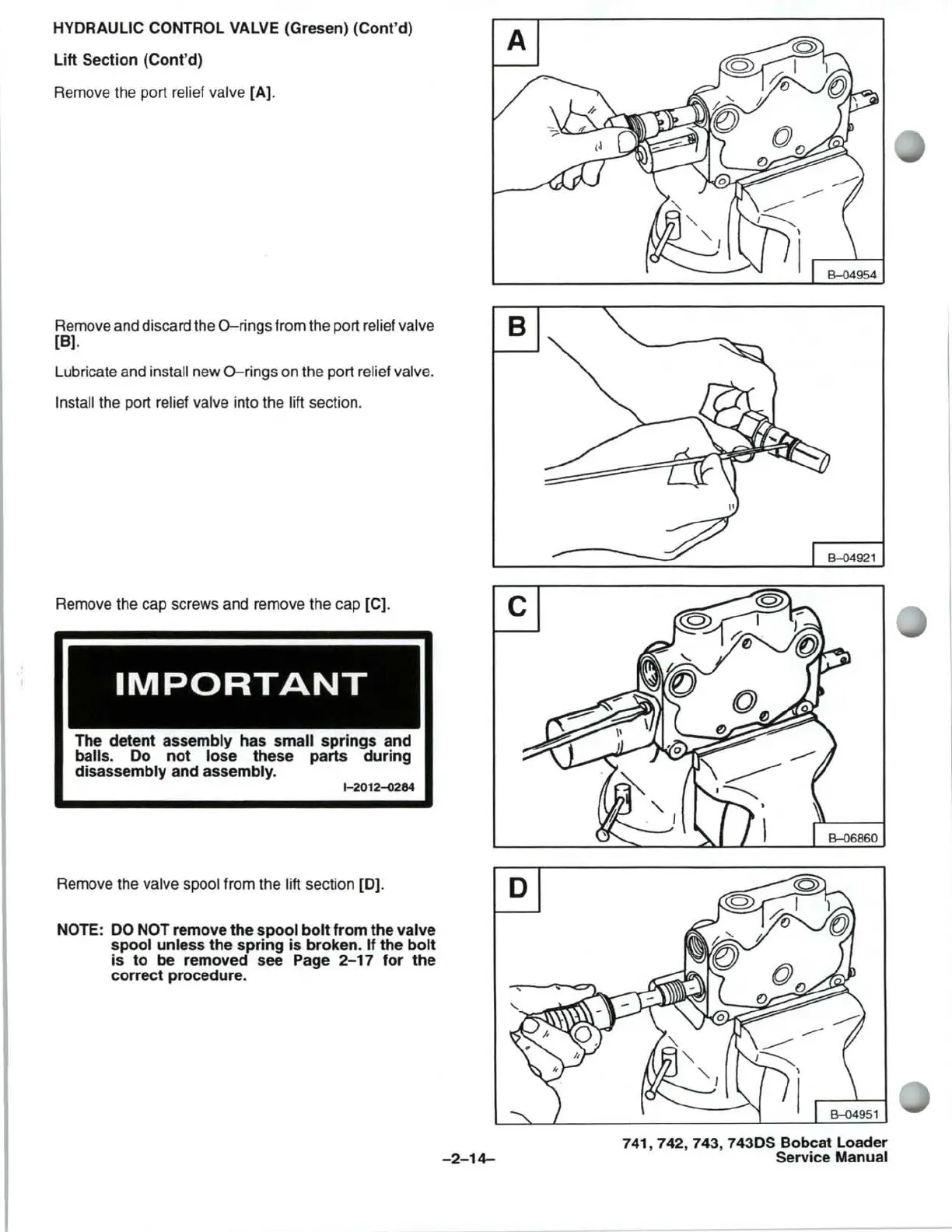

HYDRAULIC CONTROL VALVE (Gresen) (Cont'd)
Lift Section (Cont'd)
Remove the port relief valve [A].
Remove and discard the
O-rings from the port relief valve B
[B].
Lubricate and install new O-rings on the port relief valve.
Install
the port relief valve into the lift section.
Remove the cap screws and remove the cap [C].
IMPORTANT
The detent assembly has small springs and
balls. Do not lose these parts during
disassembly and assembly.
1-2012-0284
Remove the valve spool from the lift section [0].
NOTE: DO NOT remove the spool bolt from the valve
spool unless the spring is broken. If the bolt
is to be removed see Page 2-17 for the
correct procedure.
-2-14-
741, 742, 743, 7430S Bobcat Loader
Service
Manual
