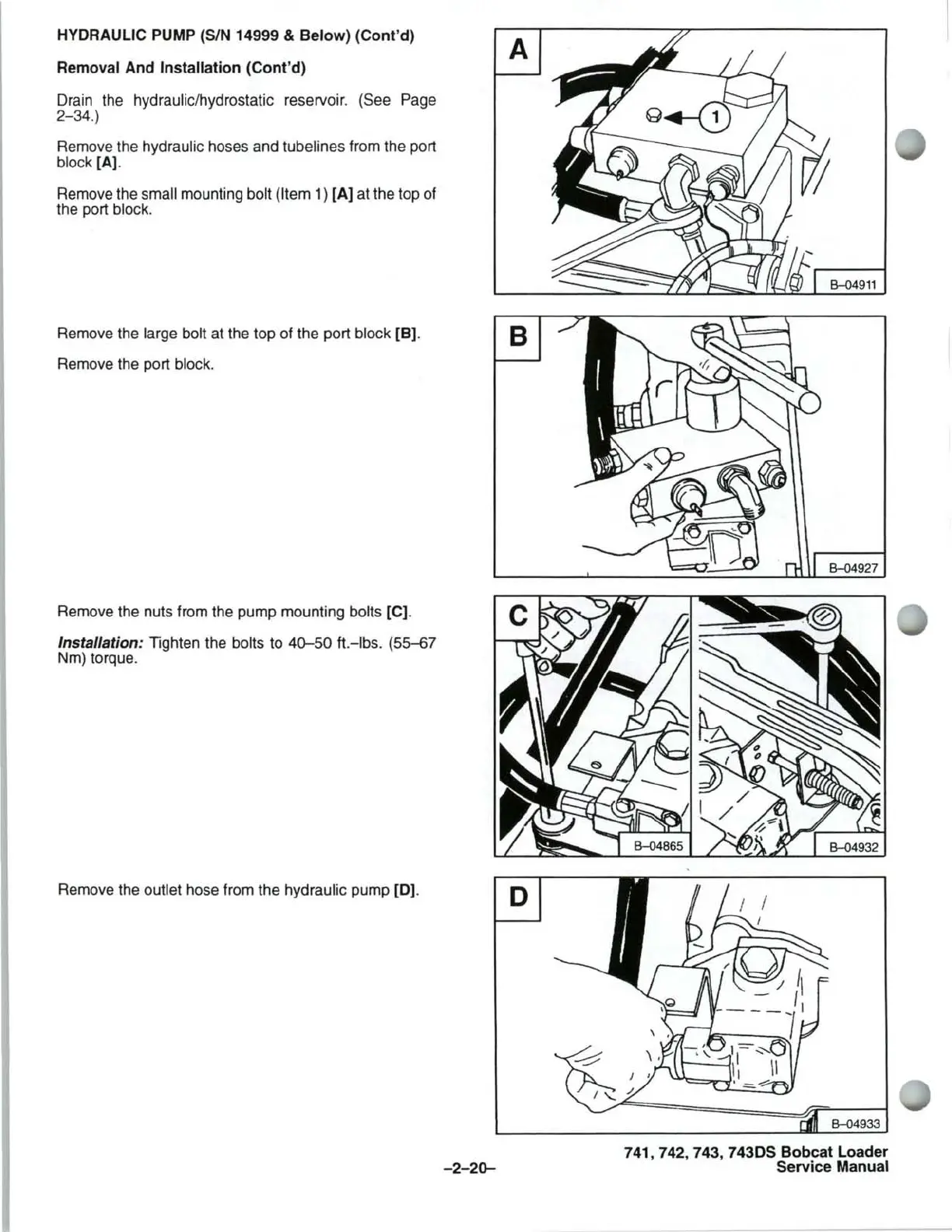

HYDRAULIC PUMP (SIN 14999 & Below) (Cont'd)
Removal And
Installation (Cont'd)
Drain the hydraulic/hydrostatic reservoir. (See Page
2-34
.)
Remove the hydraulic hoses and tubelines from the port
block [A].
Remove the small mounting bolt (Item 1) [A]
at
the top of
the port
block.
Remove the large bolt at the top of the port block [B].
Remove the port block.
Remove the nuts from the pump mounting bolts [C].
Installation: Tighten the bolts to
40-50
ft.
-Ibs
.
(55~7
Nm) torque.
A
Remove the outlet hose from the hydraulic pump [0]. 0
741, 742,
743,
743DS Bobcat Loader
-2-2()-
Service Manual
