PORT
BLOCK
(SIN 14999 &
Below)
40
Micron
Filter (Bronze)
The
tool listed will be needed to do the following
procedure:
MEL 1177 -
Filter Removal
Tool
Replace the bronze (40 micron) filter every 500 hours of
loader operation.
I
IMPORTANT
When
repairing
hydrostatic
and
hydraulic
systems,
clean
the
work
area
before
disassembly
and
keep all
parts
clean.
Always
use
caps
and
plugs
on
hoses,
tubelines
and
ports
to
keep
dirt
out.
Dirt
can
quickly
damage
the
system.
1-2003-0888
Stop the engine and raise the operator cab.
Drain the
hydraulic reservoir. (See Page
2-34.)

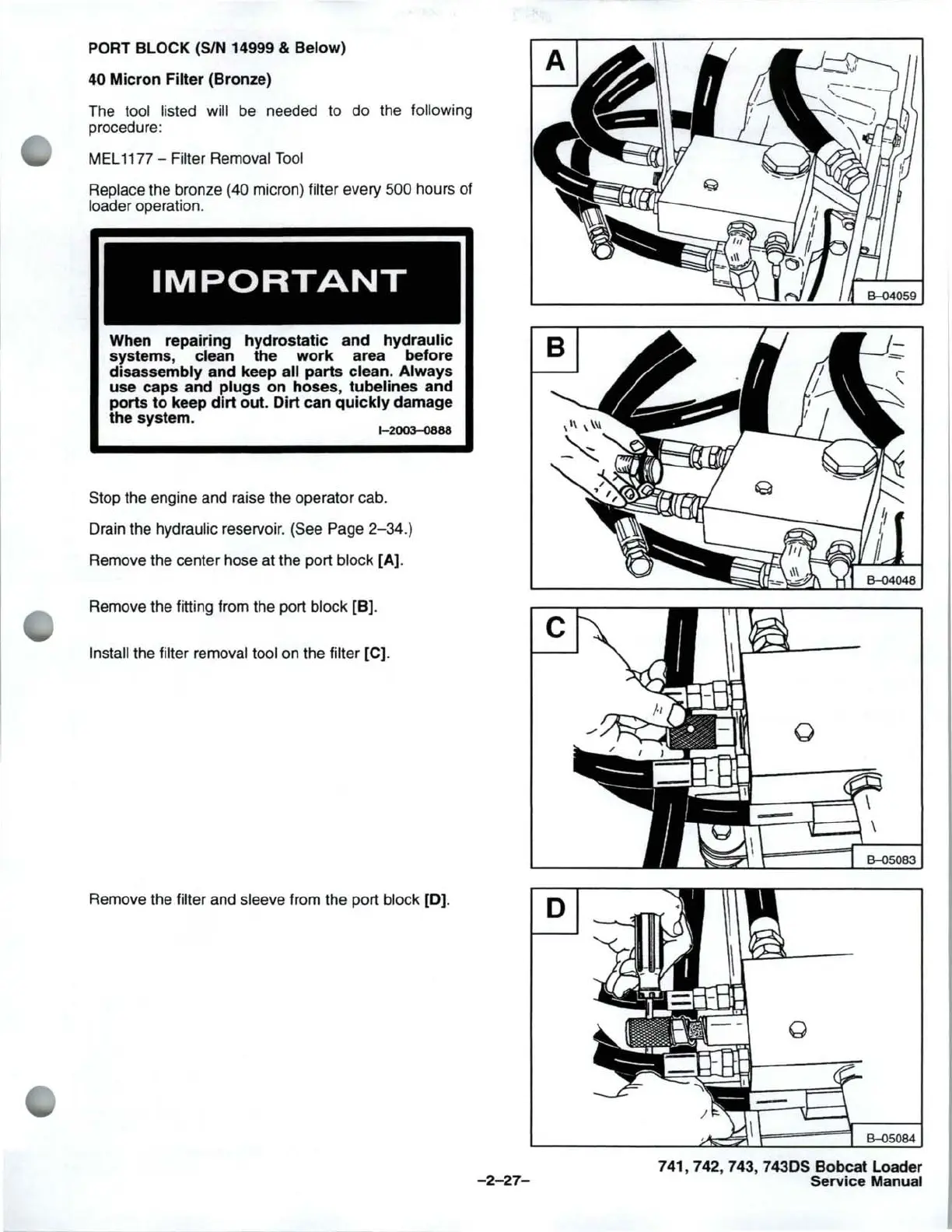

Remove the center hose at the port block [A].
Remove the fitting from the port
block
[B].
Install the filter removal tool on the filter [C].
Remove the
filter and sleeve from the port block
[0].
D
-2-27-
B-OS084
741,742,743,
743DS
Bobcat
Loader
